Installation [08/2020 - 12/2021]: Procedure

  1. INSTALL ENGINE MOUNTING BRACKET SUB-ASSEMBLY LH
    1. Install the engine mounting bracket sub-assembly LH to the vehicle body with the 4 bolts.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

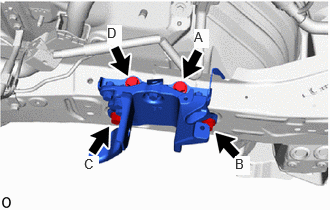

      GTY906064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Temporarily install the bolt (A), and then tighten the 4 bolts in the order of (B), (C), (D) and (A).

  2. INSTALL ENGINE MOUNTING INSULATOR LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

  3. INSTALL ENGINE MOUNTING SPACER

    HINT:

    Perform this procedure only when replacement of the engine mounting spacer is necessary.

    1. Install the engine mounting spacer to the vehicle body with the 2 bolts.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

      NOTE:

      Temporarily install the bolt (A), and then tighten the 2 bolts in the order of (B) and (A).

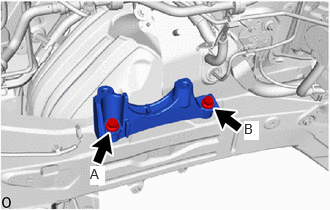

      GTY912100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Install the engine mounting insulator sub-assembly RH with the 2 bolts and nut.

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

      NOTE:

      Temporarily install the bolt (A), and then tighten the 2 bolts and nut in the order of (B), (A) and (C).

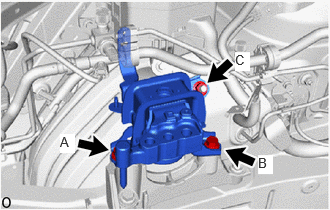

      GTY895915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the No. 2 ground wire to the engine mounting insulator sub-assembly RH with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Install the radiator reserve tank assembly with the bolt and nut in the order shown in the illustration.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

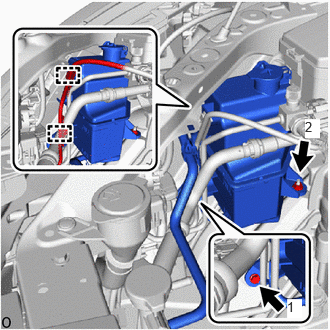

      GTY878671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 clamps and connect the wire harness to the radiator reserve tank assembly.
    5. Attach the clamp.

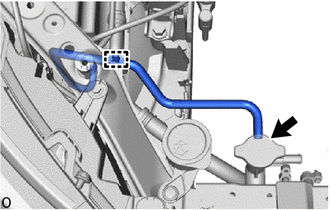

      GTY885842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the No. 6 water by-pass hose.
    7. Attach the 2 clamps to connect the suction pipe sub-assembly and air conditioning tube and accessory assembly.

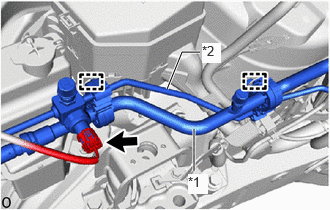

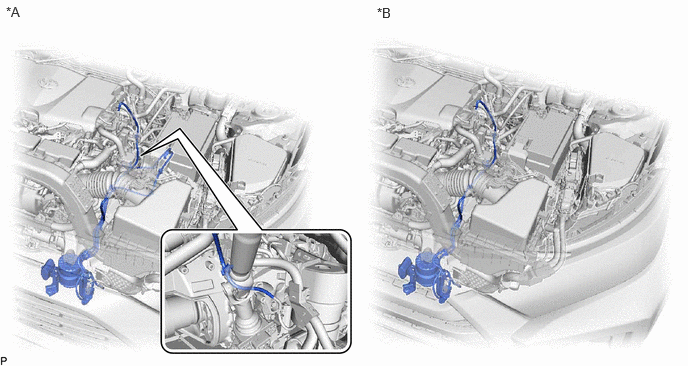

      GTY868152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Suction Pipe Sub-assembly
      *2 Air Conditioning Tube And Accessory Assembly
    8. Connect the connector.
  5. INSTALL ENGINE HANGERS

    See step  63

  6. REMOVE ENGINE ASSEMBLY FROM ENGINE STAND
    1. Remove the engine assembly from the engine stand.
  7. INSTALL ENGINE WIRE
    1. Install the engine wire to the engine assembly.
  8. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE

    Refer to PROCEDURE - Step 2

  9. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  10. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
  11. INSTALL STARTER ASSEMBLY
  12. INSTALL FLYWHEEL HOUSING SIDE COVER
  13. INSTALL REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY
  14. INSTALL REAR ENGINE MOUNTING INSULATOR (for AWD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    Refer to PROCEDURE - Step 13

  15. INSTALL PROPELLER SHAFT HEAT INSULATOR (for AWD)

    Refer to PROCEDURE - Step 14

  16. INSTALL REAR ENGINE MOUNTING INSULATOR (for 2WD)

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    Refer to PROCEDURE - Step 1

  17. INSTALL TRANSVERSE ENGINE MOUNTING BRACKET
  18. INSTALL FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

  19. INSTALL VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

    Refer to PROCEDURE - Step 1

  20. INSTALL FRONT FRAME ASSEMBLY
  21. CONNECT WIRE HARNESS
  22. INSTALL STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 11

  23. INSTALL BREATHER PLUG HOSE
  24. CONNECT WATER BY-PASS HOSE ASSEMBLY
  25. INSTALL FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)

    Refer to PROCEDURE - Step 1

  26. CONNECT VACUUM HOSE
  27. INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

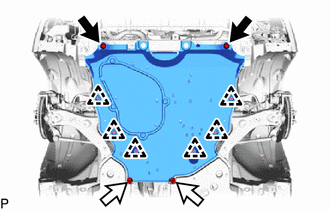

  28. INSTALL FLYWHEEL HOUSING UNDER COVER
    1. Install the flywheel housing under cover to the cylinder block sub-assembly.
  29. REMOVE ENGINE HANGERS
    1. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger from the cylinder head sub-assembly and engine mounting bracket RH.
  30. INSTALL FUEL DELIVERY GUARD
    1. Install the fuel delivery guard to the engine mounting bracket RH with the bolt.

      Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

  31. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

    HINT:

    Perform inspection after repair after replacing the engine assembly.

    Refer to INITIALIZATION [08/2020 - 12/2021]

    1. Set the engine assembly with transaxle on an engine lifter.

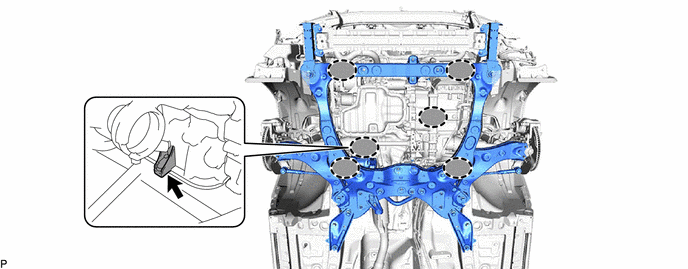

      GTY900168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Attachments - -
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle level.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
    2. Operate the engine lifter and install the engine assembly with transaxle to the vehicle.
      WARNING:

      Do not raise the engine assembly with transaxle more than necessary. If the engine is raised excessively, the vehicle may also be lifted up.

      NOTE:
      • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
      • While raising the engine assembly with transaxle into the vehicle, do not allow it to contact the vehicle.
    3. Install the front bumper extension sub-assembly LH and front bumper extension sub-assembly RH to the front frame assembly and vehicle body with the 2 bolts (A), 2 bolts (B) and 4 nuts.

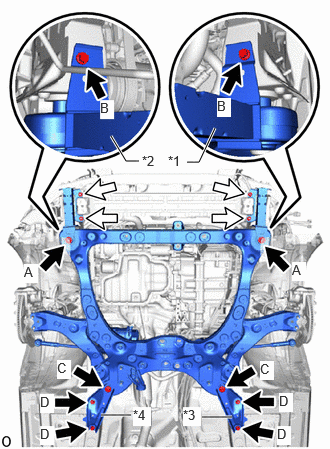

      GTY921088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Bumper Extension Sub-assembly LH
      *2 Front Bumper Extension Sub-assembly RH
      *3 Rear Front Suspension Member Brace LH
      *4 Rear Front Suspension Member Brace RH
      Bolt
      Nut

      Bolt (A)

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

      Bolt (B)

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

      Nut

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

    4. Install the rear front suspension member brace LH and rear front suspension member brace RH to the front frame assembly and vehicle body with the 2 bolts (C) and 4 bolts (D).

      Bolt (C)

      Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

      Bolt (D)

      Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)

    5. Install the engine mounting insulator LH to the engine mounting bracket sub-assembly LH with the bolt and nut.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE:

      While holding the bolt in place, tighten the nut.

    6. Install the engine mounting insulator sub-assembly RH to the engine mounting bracket RH with the 3 bolts and nut.

      Bolt

      Torque: 72 N*m (734 kgf*cm, 53 ft.*lbf)

      Nut

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  32. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 11

  33. INSTALL FRONT DRIVE SHAFT HOLE SNAP RING LH
  34. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
  35. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
  36. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  37. CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  38. CONNECT TIE ROD ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  39. CONNECT TIE ROD ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  40. CONNECT FRONT STABILIZER LINK ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  41. CONNECT FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  42. CONNECT FRONT SPEED SENSOR LH

    Refer to PROCEDURE - Step 15

  43. CONNECT FRONT SPEED SENSOR RH

    HINT:

    Use the same procedure described for the LH side.

  44. INSTALL FRONT AXLE SHAFT NUT LH

    Refer to PROCEDURE - Step 8

  45. INSTALL FRONT AXLE SHAFT NUT RH

    HINT:

    Use the same procedure described for the LH side.

  46. STAKE FRONT AXLE SHAFT NUT LH

    Refer to PROCEDURE - Step 16

  47. STAKE FRONT AXLE SHAFT NUT RH

    HINT:

    Use the same procedure described for the LH side.

  48. TEMPORARILY INSTALL PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 1

  49. TIGHTEN PROPELLER SHAFT ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 2

  50. INSPECT AND ADJUST JOINT ANGLE (for AWD)

    Refer to PROCEDURE - Step 3

  51. INSTALL LOWER NO. 1 FRONT FLOOR HEAT INSULATOR (for AWD)

    Refer to PROCEDURE - Step 4

  52. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to PROCEDURE - Step 8

  53. INSTALL NO. 1 FLOOR UNDER COVER (w/ Cover)

    Refer to PROCEDURE - Step 10

  54. INSTALL FRONT FLOOR COVER RH (w/ Cover)

    Refer to PROCEDURE - Step 11

  55. INSTALL NO. 2 FLOOR UNDER COVER (w/ Cover)

    Refer to PROCEDURE - Step 12

  56. INSTALL FRONT FLOOR COVER LH (w/ Cover)

    Refer to PROCEDURE - Step 13

  57. INSTALL NO. 5 WATER BY-PASS HOSE
    1. Install the No. 5 water by-pass hose to the radiator assembly and No. 3 water by-pass pipe, and slide the 2 clips to secure it.
      NOTE:
      • Align the direction of the claw on the clip with the paint mark on the hose.
      • Make sure the No. 5 water by-pass hose is securely inserted to the stopper.
      GTY930185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b View B
      *c 360° *d 120°
      *e Paint Mark *f Upper Side
      *g Front Side *h Rear Side
      *i 2 to 7 mm (0.0787 to 0.276 in.) *j 2 to 5 mm (0.0787 to 0.197 in.)
  58. CONNECT WIRE HARNESS
    1. Connect the wire harness to the vehicle body with the bolt.

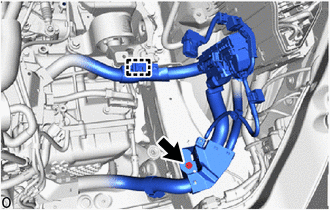

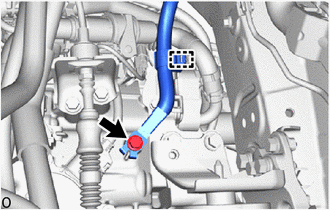

      GTY885831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Attach the clamp.
    3. Attach the claw to install the wire harness to the engine room relay block and junction block assembly.

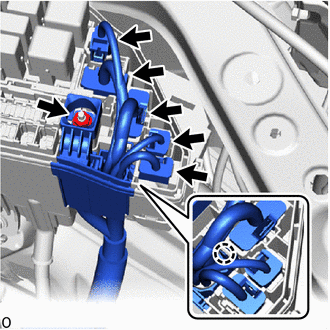

      GTY885837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 5 connectors to the engine room relay block and junction block assembly.
    5. Install the nut to the engine room relay block and junction block assembly.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    6. Attach the 3 claws and install the No. 2 relay block cover.

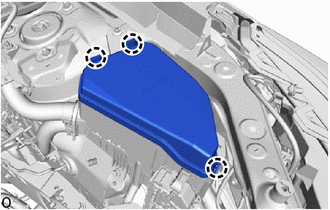

      GTY885836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. CONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  60. CONNECT SUCTION HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  61. CONNECT NO. 2 RADIATOR HOSE
    1. Connect the No. 2 radiator hose to the radiator assembly and slide the clip to secure it.
      NOTE:
      • Align the direction of the claw on the clip with the paint mark on the hose.
      • Make sure the No. 2 radiator hose is securely inserted to the stopper.

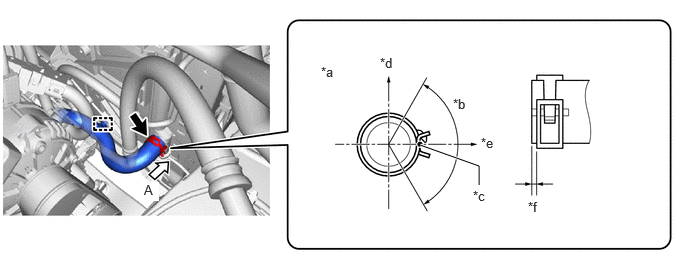

      GTY858655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 120°
      *c Paint Mark *d Upper Side
      *e RH Side *f 2 to 5 mm (0.0787 to 0.197 in.)
  62. CONNECT NO. 1 RADIATOR HOSE
    1. Connect the No. 1 radiator hose to the water outlet and slide the clip to secure it.
      NOTE:
      • Align the direction of the claw on the clip with the paint mark on the hose.
      • Make sure the No. 1 radiator hose is securely inserted to the stopper.
      GTY852986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a View A *b 90°
      *c Paint Mark *d Upper Side
      *e Front Side *f 2 to 7 mm (0.0787 to 0.276 in.)
  63. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Connect the fuel tube sub-assembly.
      1. Connect the fuel tube sub-assembly to the fuel pipe.

        Refer to PRECAUTION [08/2020 - ]

    2. Install the No. 1 fuel pipe clamp to the fuel tube connector.

      Refer to PRECAUTION [08/2020 - ]

  64. CONNECT OUTLET HEATER WATER HOSE
    1. Align the protrusion of the No. 2 water by-pass pipe sub-assembly with the cutout in the outlet heater hose connector and securely insert the outlet heater water hose connector to the stopper of the pipe.

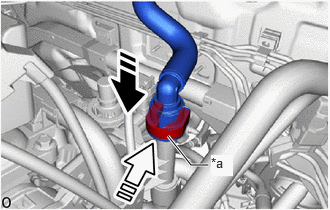

      GTY765348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Cutout
    2. Push in the retainer.
      GTY909993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push in
    3. Check that the No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector are securely connected by pulling on them.
  65. CONNECT INLET HEATER WATER HOSE
    1. Align the protrusions of the inlet heater water hose connector with the cutouts in the flow shutting valve (water by-pass hose assembly) and securely insert the inlet heater water hose connector to the stopper of the pipe.
      GTY767363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Cutout
    2. Push in the retainer.

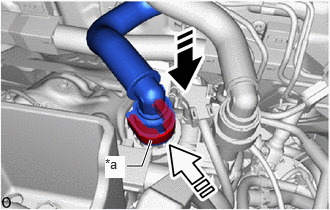

      GTY940031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push
      Push in
    3. Check that the flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector are securely connected by pulling on them.
  66. CONNECT NO. 1 VACUUM HOSE CONNECTOR

    Refer to PROCEDURE - Step 3

  67. CONNECT UNION TO CHECK VALVE HOSE
    1. Connect the union to check valve hose to the vacuum pump assembly and slide the clip to secure it.
  68. CONNECT NO. 1 FUEL VAPOR FEED HOSE
    1. Connect the No. 1 fuel vapor feed hose to the purge VSV and slide the clip to secure it.
  69. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

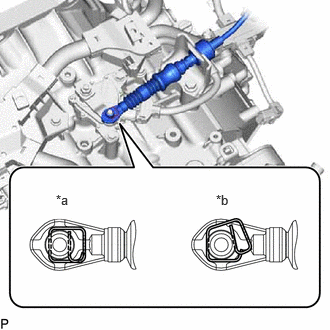

    1. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

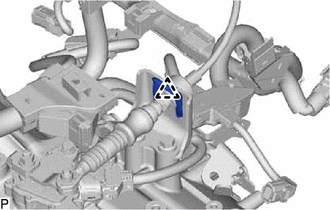

      GTY852853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
      NOTE:

      Before installing the transmission control cable assembly, check that the park/neutral position switch assembly and shift lever are in N.

      GTY943973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect
  70. CONNECT NO. 3 ENGINE WIRE
    1. Connect the No. 3 engine wire to the automatic transaxle assembly with the bolt.
      GTY885824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Attach the clamp to the bracket.
  71. INSTALL BATTERY CLAMP SUB-ASSEMBLY
    1. Install the battery clamp sub-assembly with the 3 bolts.

      Torque: 18.5 N*m (189 kgf*cm, 14 ft.*lbf)

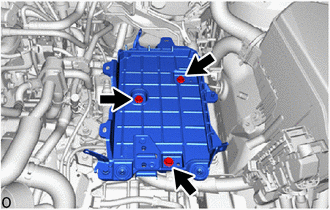

      GTY885829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 claws and connect the engine room main wire to the No. 2 engine wire.

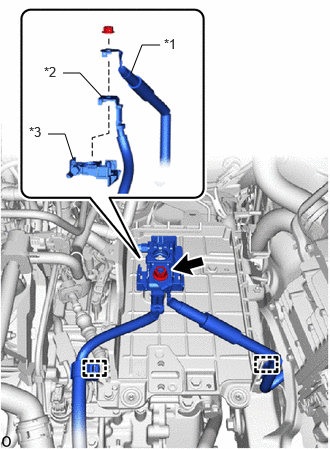

      GTY920478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Engine Room Main Wire
      *2 No. 2 Engine Wire
      *3 Positive (+) Battery Terminal
    3. Connect the engine room main wire and No. 2 engine wire to the positive (+) battery terminal with the nut.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    4. Attach the 2 clamps and connect the engine room main wire and No. 2 engine wire to the battery clamp sub-assembly.
    5. Attach the 2 clamps to the battery clamp sub-assembly.

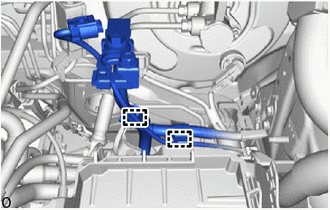

      GTY886437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. INSTALL BATTERY

    Refer to PROCEDURE - Step 1

  73. INSTALL ECM

    Refer to PROCEDURE - Step 3

  74. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  75. INSTALL INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 3

  76. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    1. Attach the 3 clips to install the No. 1 engine cover sub-assembly.
      GTY930792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Securely attach the clips.
      • If the clips are forcibly attached or struck with an object, they may be damaged.
  77. INSPECT VACUUM HOSES
    1. Inspect the vacuum hoses.
      GTY867890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD *B for AWD
  78. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [08/2020 - 12/2021]

  79. INSPECT SHIFT LEVER POSITION
  80. ADJUST SHIFT LEVER POSITION
  81. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

    Refer to PROCEDURE - Step 2

  82. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5

  83. ADD SPECIFIED AMOUNT OF AUTOMATIC TRANSAXLE FLUID
  84. ADD TRANSFER OIL (for AWD)
  85. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  86. ADJUST AUTOMATIC TRANSAXLE FLUID
  87. WARM UP ENGINE

    Refer to PROCEDURE - Step 4

  88. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6

  89. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  90. INSPECT FOR REFRIGERANT LEAK

    Refer to PROCEDURE - Step 5

  91. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  92. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 8

  93. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 1

  94. INSPECT ENGINE COOLANT LEVEL IN RESERVOIR

    Refer to PROCEDURE - Step 2

  95. INSTALL FRONT LOWER BUMPER ABSORBER
    1. Attach the 2 claws to install the front lower bumper absorber.
    2. Install the 5 bolts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  96. INSTALL FRONT BUMPER ASSEMBLY
  97. INSTALL FRONT FENDER APRON SEAL LH
    1. Install the front fender apron seal LH with the 2 bolts and clip.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      GTY915278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Clip
  98. INSTALL FRONT FENDER APRON SEAL RH
    1. Install the front fender apron seal RH with the 2 bolts and clip.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      GTY927625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Clip
  99. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY
    1. Install the No. 2 engine under cover assembly with the 2 bolts, 2 screws and 6 clips.

      Bolt

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      GTY914296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
  100. INSTALL NO. 1 ENGINE UNDER COVER
    1. Attach the guide and install the No. 1 engine under cover.
    2. Install the 2 bolts and 10 screws. (Short Type Front Fender Front Splash Shield)

      Bolt

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    3. Install the 2 bolts and 8 screws. (Long Type Front Fender Front Splash Shield)

      Bolt

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

      GTY908860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Short Type Front Fender Front Splash Shield - -
      Bolt Screw
  101. INSTALL FRONT FENDER FRONT SPLASH SHIELD LH
    1. for Short Type:
      1. Attach the clip to install the front fender front splash shield LH.
        GTY847985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 3 screws.
    2. for Long Type:
      1. Attach the clip to install the front fender front splash shield LH.
        GTY847919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 4 screws.
  102. INSTALL FRONT FENDER FRONT SPLASH SHIELD RH
    1. for Short Type:
      1. Attach the clip to install the front fender front splash shield RH.
        GTY847986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 3 screws.
    2. for Long Type:
      1. Attach the clip to install the front fender front splash shield RH.
        GTY847920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 4 screws.
  103. INSTALL FRONT WHEELS

    Refer to PROCEDURE - Step 1

  104. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  105. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [08/2020 - 12/2021]

  106. INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  107. INSPECT IGNITION TIMING

    Refer to PROCEDURE - Step 9

  108. INSPECT ENGINE IDLE SPEED

    Refer to PROCEDURE - Step 10

  109. INSPECT CO/HC

    Refer to PROCEDURE - Step 12

  110. CHECK SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [11/2018 - ]

scientia non olet · About LEMON Manuals
