Installation [11/2018 - ]: Procedure

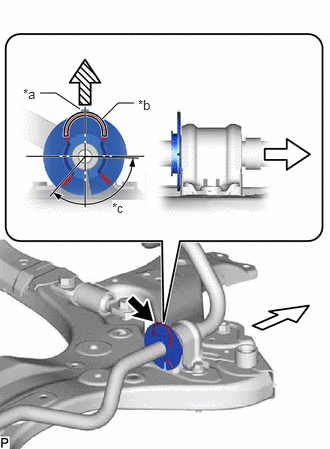

1. Install the front No. 1 stabilizer bar bushing to the front stabilizer bar as shown in the illustration.
   NOTE:

   • Install the front No. 1 stabilizer bar bushing so that the cutout is facing the rear of the vehicle.
   • Install the front No. 1 stabilizer bar bushing onto the front stabilizer bar so that the stopper ring of the front stabilizer bar faces the outside of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cutout
   *b	Stopper Ring
   	Front of the Vehicle
   	Outside of the Vehicle

HINT:

Perform the same procedure as for the LH side.

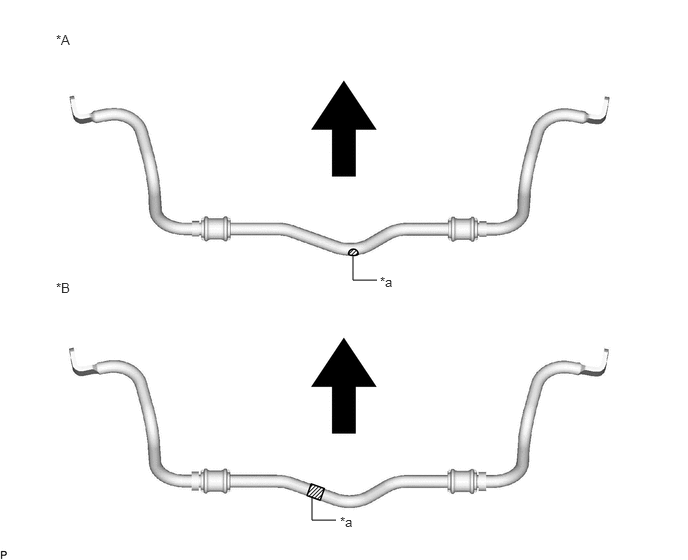

1. Install the front stabilizer bar with the 2 front stabilizer bar bushings to the front frame assembly.
   NOTE:

   Make sure that the identification mark is positioned as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for TMC Made	*B	for TMMC Made
   *a	Identification Mark	-	-
   	Front of the Vehicle	-	-

1. Install the front No. 1 stabilizer bracket LH to the front frame assembly with the 2 bolts.

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   NOTE:

   • Make sure to install the front No. 1 stabilizer bracket LH with its arrow facing the front of the vehicle.
   • Temporarily tighten the bolt (B) and then fully tighten the 2 bolts in the order of (A) and (B).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow
   	Front of the Vehicle

HINT:

Perform the same procedure as for the LH side.

1. Install the front stabilizer bar protector to the front stabilizer bar.
   NOTE:

   • Install the front stabilizer bar protector so that the protrusion is facing the upper side of the vehicle.
   • Press the front stabilizer bar protector so that it contacts the side of the front No. 1 stabilizer bar bushing and install the front stabilizer bar protector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protrusion
   *b	Curled Top of Clip
   *c	Notch Area
   	Right Side of Vehicle
   	Upper Side of Vehicle

2. Install the clip.
   NOTE:

   Install so that the curled top of the clip does not enter the notch area.

• for HV Model:

  Refer to INSTALLATION [11/2018 - 02/2019] , or refer to INSTALLATION [02/2019 - 08/2020] , or refer to INSTALLATION [08/2020 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

• for Gasoline Model:

  Refer to INSTALLATION [11/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

1. Install the front stabilizer link assembly LH to the front stabilizer bar with the nut.

   Torque: 74 N.m (755 kgf/cm, 55 ft.lbf)

   NOTE:

   Do not damage the boot of the ball joint.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

HINT:

Perform the same procedure as for the LH side.
