Removal [11/2022 - ]: Procedure

  1. REMOVE IGNITION COIL ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 1
  2. REMOVE SPARK PLUG
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If a spark plug has been struck or dropped, replace it.

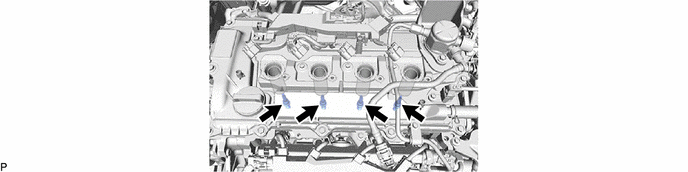

    1. GTY1029557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
