Removal [11/2022 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [11/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 9

  5. SEPARATE ENGINE WIRE

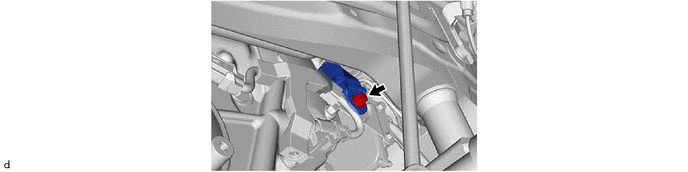

    1. GTY1035899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TCM

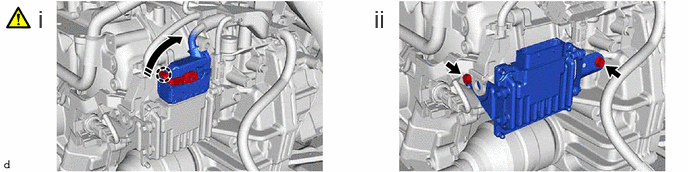

    1. GTY1035940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the claw, rotate the lever and disconnect the connector.
      2. Remove the 2 bolts and TCM from the continuously variable transaxle assembly.
  7. REMOVE NO. 1 TRANSMISSION CONTROL ECU BRACKET
    1. GTY1034319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 TRANSMISSION CONTROL ECU BRACKET
    1. GTY1034911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
