Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 9

  2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY

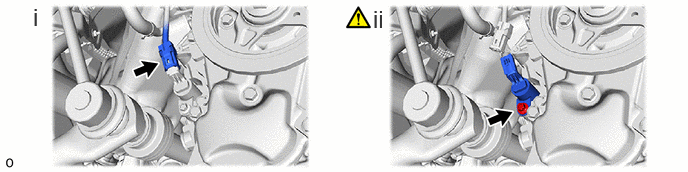

    1. GTY1105765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the oil pressure control valve assembly connector.
      2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
