Adjustment [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. DRAIN HYBRID TRANSAXLE FLUID

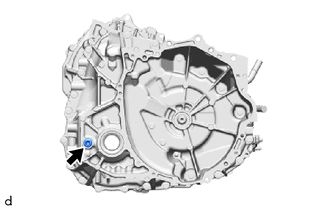

    1. Remove the filler plug and gasket from the hybrid vehicle transaxle assembly.
      GTY1113149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

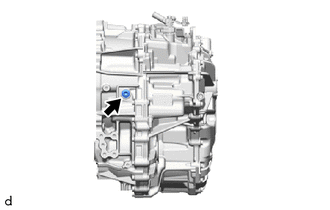

    2. Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the hybrid vehicle transaxle assembly and drain the hybrid transaxle fluid.
      GTY1113150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a 10 mm hexagon socket wrench, install the drain plug and a new gasket to the hybrid vehicle transaxle assembly.

      Torque: 50 N.m (510 kgf/cm, 37 ft.lbf)

    4. Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

      HINT:

      Reuse the old gasket as the filler plug will be removed again.

  3. ADD HYBRID TRANSAXLE FLUID

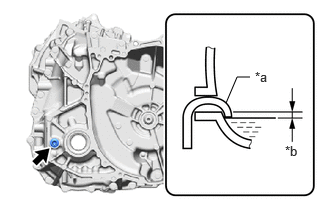

    1. Remove the filler plug and gasket from the hybrid vehicle transaxle assembly.
      GTY1110379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Filler Nozzle
      *b 0 to 10 mm (0 to 0.394 in.)
    2. Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening. [#]
      NOTE:
      • When adding hybrid transaxle fluid, make sure that the vehicle is level.
      • Use Toyota Genuine e-Transaxle Fluid TE.

        Using transmission fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transmission of your vehicle.

      • Be sure to fully insert the filler nozzle into the filler plug opening.
      • Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
      • Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
      • Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the hybrid vehicle transaxle assembly.

      Hybrid Transaxle Fluid Standard Capacity (for Reference)

      3.7 liters (3.8 US qts, 3.2 Imp. qts)

    3. After adding hybrid transaxle fluid, leave the vehicle for 30 seconds so that the hybrid transaxle fluid surface can become still again, and then check that the hybrid transaxle fluid level is between 0 to 10 mm (0 to 0.394 in.) from the bottom lip of the filler plug opening. (If the hybrid transaxle fluid level is low, repeat this procedure from step [#].)
      NOTE:

      After adding hybrid transaxle fluid, make sure to check the hybrid transaxle fluid level.

    4. Temporarily install the filler plug and gasket to the hybrid vehicle transaxle assembly.

      HINT:

      Reuse the old gasket as the filler plug will be removed again.

  4. INSPECT HYBRID TRANSAXLE FLUID

    See step  2

  5. INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
  6. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 67
