VC Output Circuit [11/2023 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
- For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM

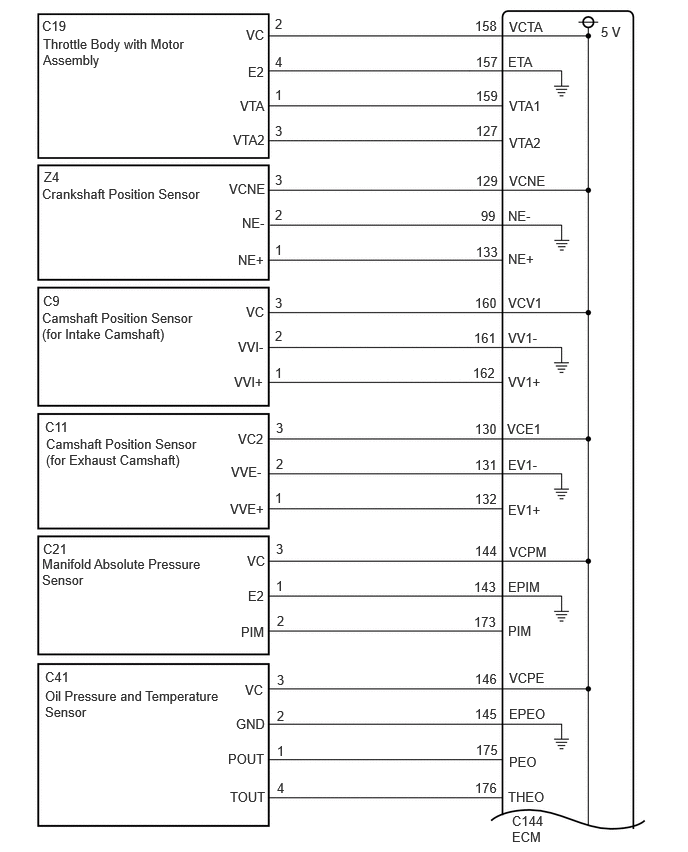

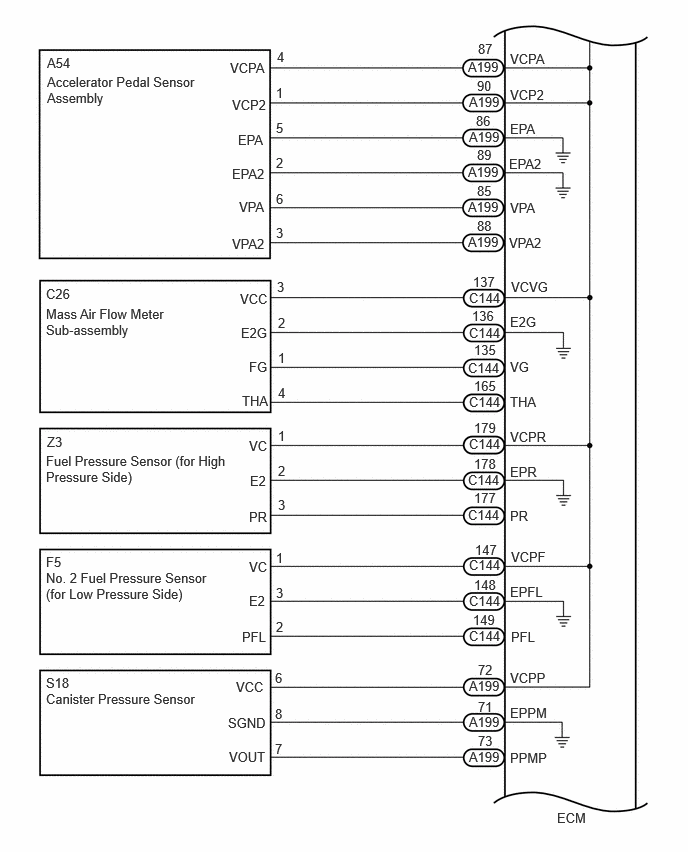

- VC Output Circuit
