Section 52 (Engine Control System (M20A-FKS) - Circuit Tests & Symptom Tests)
>>
SFI SYSTEM (for K121)
>>
ECM Power Source Circuit [11/2023 - ]
>>

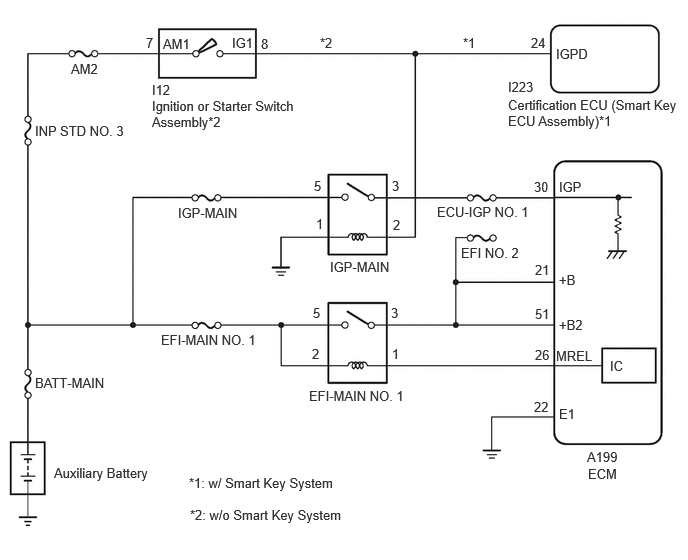

Wiring Diagram
ECM Power Source Circuit [11/2023 - ]: Wiring Diagram
WARNING:
This page is about a different car, the 2025 Toyota Corolla Cross and 2024 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
