Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [11/2022 - ]

  3. REMOVE CONNECTOR COVER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  4 [11/2022 - 12/2024], or see step  4 [12/2024 - ]
  4. CHECK TERMINAL VOLTAGE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  5 [11/2022 - 12/2024], or see step  5 [12/2024 - ]
  5. INSTALL CONNECTOR COVER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  6
  6. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 1

  7. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  9. REMOVE REAR DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 16

  10. REMOVE REAR UNDER SIDE COVER RH

    See step  11

  11. REMOVE REAR DOOR SCUFF PLATE LH
    1. Use the same procedure as for the RH side.
  12. REMOVE REAR UNDER SIDE COVER LH
    1. Use the same procedure as for the RH side.
  13. REMOVE REAR UNDER COVER

    See step  14

  14. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  15

  15. REMOVE NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  21
  16. DISCONNECT FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  22
  17. DISCONNECT FLOOR WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

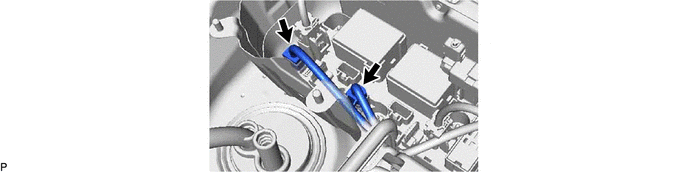

    1. GTY1106219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 TRACTION BATTERY DEVICE BOX
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

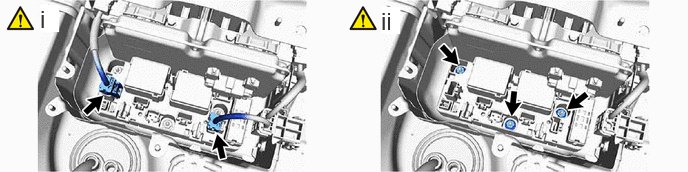

    1. GTY1105190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the 2 No. 1 traction battery device box assembly connectors.
        NOTE:

        Insulate the disconnected high-voltage connectors with insulating tape.

      2. Remove the 3 nuts and No. 1 traction battery device box assembly from the No. 1 hybrid battery shield sub-assembly.
        NOTE:

        If the No. 1 traction battery device box assembly has been struck or dropped, replace it with a new one.
