Removal [11/2022 - ]: Procedure

  1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

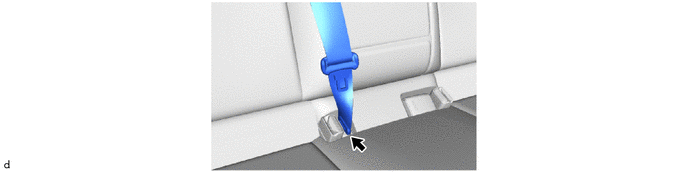

    1. GTY1031779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

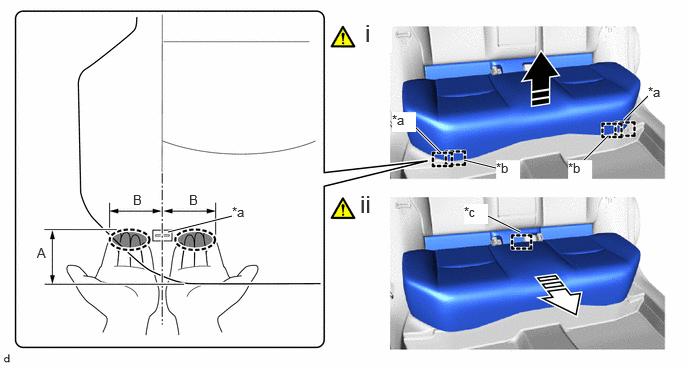

    1. GTY1106264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Front Side *b Guide
      *c Rear Seat Cushion Frame Hook Rear Side - -
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Lift the front edge of the bench type rear seat cushion assembly as shown in the illustration and disengage the rear seat cushion frame hooks on the front side and guides of the bench type rear seat cushion assembly from the rear seat cushion lock hooks.
        NOTE:

        Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

        Standard Measurement

        Area Measurement Area Measurement
        A 60 mm (2.36 in.) B 80 mm (3.15 in.)
      2. Disengage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.
        NOTE:

        Be careful not to damage the bench type rear seat cushion assembly, body exterior or interior parts.

  3. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for HEV Model)

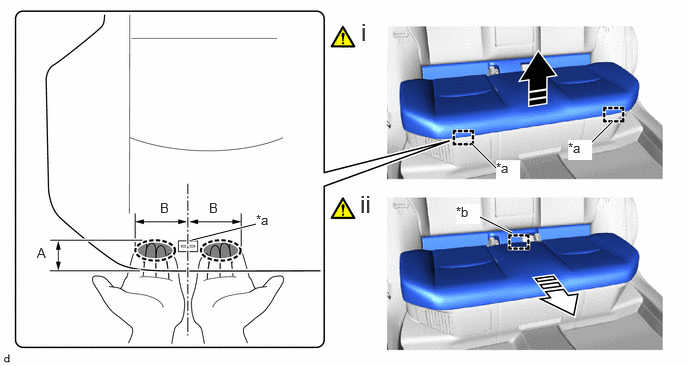

    1. GTY1106250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Front Side *b Rear Seat Cushion Frame Hook Rear Side
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Lift the front edge of the bench type rear seat cushion assembly as shown in the illustration and disengage the rear seat cushion frame hooks on the front side of the bench type rear seat cushion assembly from the rear seat cushion lock hooks.
        NOTE:

        Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

        Standard Measurement

        Area Measurement Area Measurement
        A 60 mm (2.36 in.) B 80 mm (3.15 in.)
      2. Disengage the rear seat cushion frame hook on the rear side of the bench type rear seat cushion assembly as shown in the illustration.
        NOTE:

        Be careful not to damage the bench type rear seat cushion assembly, body exterior or interior parts.

  4. REMOVE REAR SEATBACK ASSEMBLY RH

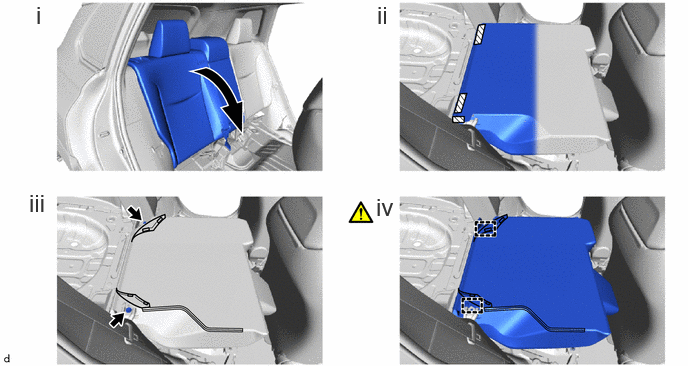

    1. GTY1032391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fold the rear seatback assembly RH forward.
      2. Disengage the hook and loop fasteners.
      3. Remove the 2 bolts.
      4. Disengage the guides to remove the rear seatback assembly RH.
        NOTE:

        Be careful not to damage the vehicle body.

  5. REMOVE REAR SEATBACK ASSEMBLY LH

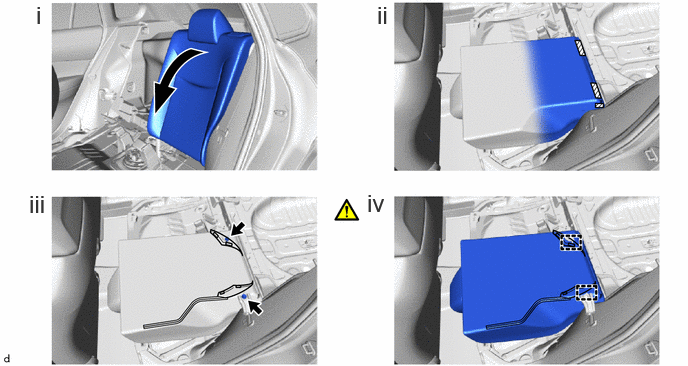

    1. GTY1104140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Fold the rear seatback assembly LH forward.
      2. Disengage the hook and loop fasteners.
      3. Remove the 2 bolts.
      4. Disengage the guides to remove the rear seatback assembly LH.
        NOTE:

        Be careful not to damage the vehicle body.

  6. REMOVE REAR SEAT CUSHION LOCK HOOK

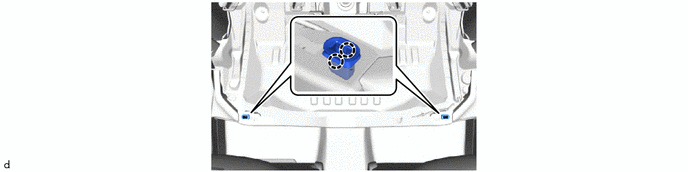

    1. GTY1105074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR CENTER SEATBACK HINGE SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 HINT:
    Perform this procedure only when replacement of the rear center seatback hinge sub-assembly is necessary.

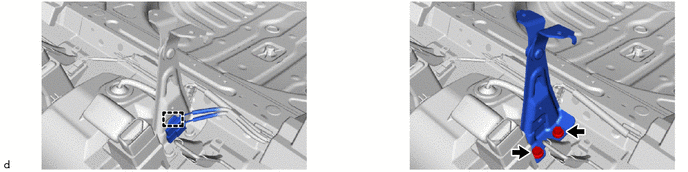

    1. GTY1105073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
