Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [11/2022 - ]

  3. REMOVE CONNECTOR COVER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  4 [11/2022 - 12/2024], or see step  4 [12/2024 - ]
  4. CHECK TERMINAL VOLTAGE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  5 [11/2022 - 12/2024], or see step  5 [12/2024 - ]
  5. TEMPORARILY INSTALL CONNECTOR COVER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  6 [11/2022 - 12/2024], or see step  6 [12/2024 - ]
  6. DISCONNECT FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  7 [11/2022 - 12/2024], or see step  7 [12/2024 - ]
  7. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  9. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  10. REMOVE REAR DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 16

  11. REMOVE REAR UNDER SIDE COVER RH

    See step  11

  12. REMOVE REAR DOOR SCUFF PLATE LH
    1. Use the same procedure as for the RH side.
  13. REMOVE REAR UNDER SIDE COVER LH

    See step  13

  14. REMOVE REAR UNDER COVER

    See step  14

  15. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  15

  16. REMOVE REAR SEATBACK ASSEMBLY RH

    Refer to PROCEDURE - Step 4

  17. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  18. REMOVE REAR DECK TRIM COVER

    Refer to PROCEDURE - Step 33

  19. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  20. REMOVE SPARE WHEEL CUSHION

    Refer to PROCEDURE - Step 3

  21. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 5

  22. SEPARATE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 18

  23. REMOVE REAR SEAT SIDE GARNISH RH

    Refer to PROCEDURE - Step 31

  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 36
  25. REMOVE NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  21
  26. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

  27. REMOVE DASH PANEL HEAT INSULATOR

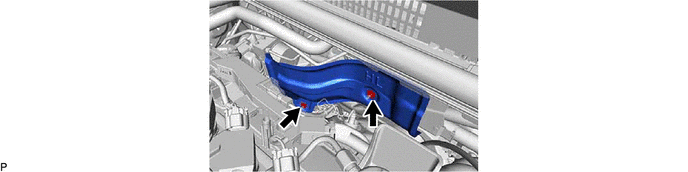

    1. GTY1106060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. DISCONNECT FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:

    Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

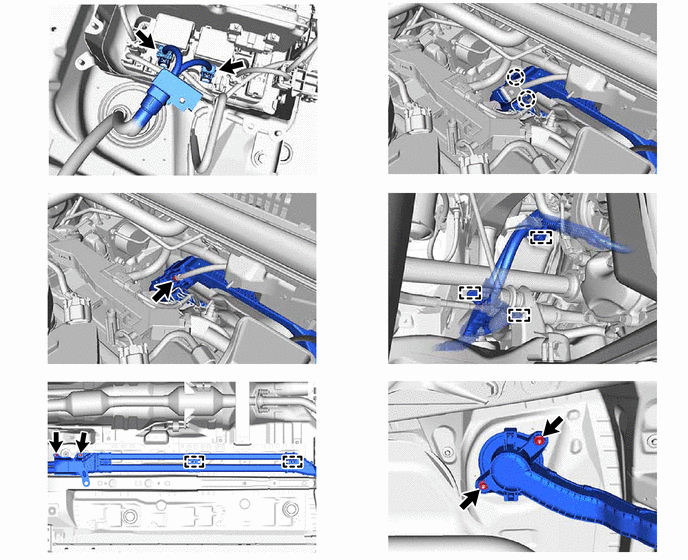

    1. GTY1109213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Shield Ground - -
  29. REMOVE BATTERY TERMINAL CONNECTOR COVER

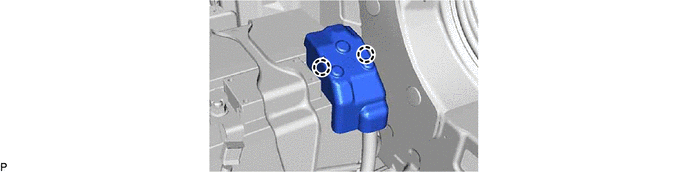

    1. GTY1106058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FLOOR UNDER WIRE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    WARNING:

    Wear insulated gloves.

    NOTE:

    Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

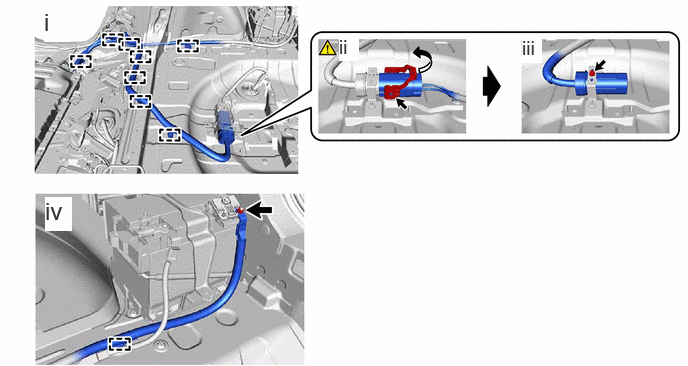

    1. GTY1105085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 8 clamps.
      2. Move the lock lever as shown in the illustration and disconnect the rear traction motor cable connector.
      3. Remove the bolt.
      4. Disengage the clamp and remove the nut.
