Removal [11/2022 - ]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
- WHEN REPLACING BATTERY ECU ASSEMBLY
HV battery learning values are stored in the battery ECU assembly and ECM and are used to detect malfunctions and illuminate the hybrid battery indicator light in the combination meter assembly. When either of these ECUs is replaced, the new ECU receives the HV battery learning values from the other ECU and stores them.
NOTE:- Do not replace the battery ECU assembly and ECM at the same time as the HV battery learning values will be lost. However, if it is necessary to replace both ECUs at the same time, replace them by following the procedure below.
- Do not replace the battery ECU assembly or ECM with a used one from another vehicle.
- Procedure when replacing both battery ECU assembly and ECM:
1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Replace either ECU.
3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Turn the ignition switch on (READY) and wait for 5 minutes or more.
5. Turn the ignition switch off and disconnect the cable from the negative (-) auxiliary battery terminal.
6. Replace the other ECU.
7. Connect the cable to the negative (-) auxiliary battery terminal.
8. Check that the ignition switch can be turned on (READY).
HINT:
If the battery ECU assembly and ECM are replaced at the same time without following the above procedure, replace either of the ECUs with its original one and then replace it again by following the above procedure. If the correct procedure is not followed, perform the procedure again from the beginning.
- Procedure when replacing both battery ECU assembly and ECM:
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [11/2022 - ]
- REMOVE CONNECTOR COVER ASSEMBLY
See step 4 [11/2022 - 12/2024], or see step 4 [12/2024 - ] - CHECK TERMINAL VOLTAGE
See step 5 [11/2022 - 12/2024], or see step 5 [12/2024 - ] - INSTALL CONNECTOR COVER ASSEMBLY
See step 6 - DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR SCUFF PLATE RH
Refer to PROCEDURE - Step 16
- REMOVE REAR UNDER SIDE COVER RH
See step 11
- REMOVE REAR DOOR SCUFF PLATE LH
- Use the same procedure as for the RH side.
- REMOVE REAR UNDER SIDE COVER LH
- Use the same procedure as for the RH side.
- REMOVE REAR UNDER COVER
See step 14
- REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY
See step 15

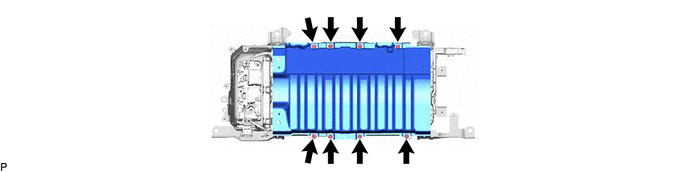

- REMOVE NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY
See step 21 - REMOVE UPPER HV BATTERY COVER SUB-ASSEMBLY WARNING:
Be sure to wear insulated gloves and protective goggles.

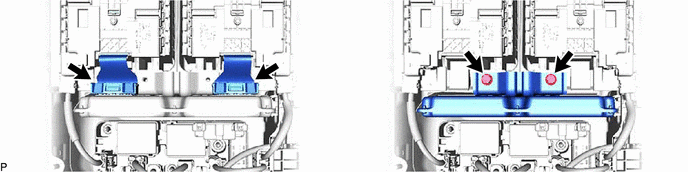

- REMOVE BATTERY ECU ASSEMBLY WARNING:
Be sure to wear insulated gloves and protective goggles.
NOTE:- Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.
- If the battery ECU assembly has been struck or dropped, replace it.
