Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  3. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 6

  4. REMOVE REAR DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 16

  5. REMOVE REAR UNDER SIDE COVER RH

    See step  11

  6. REMOVE REAR DOOR SCUFF PLATE LH
    1. Use the same procedure as for the RH side.
  7. REMOVE REAR UNDER SIDE COVER LH

    See step  13

  8. REMOVE REAR UNDER COVER

    See step  14

  9. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  15

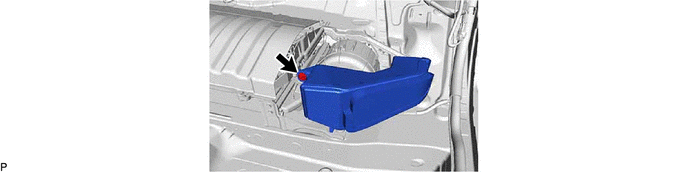

  10. REMOVE NO. 1 EV BATTERY INTAKE DUCT
    1. GTY1108970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

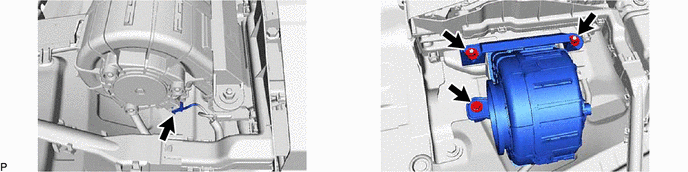

  11. REMOVE BATTERY COOLING BLOWER ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Be sure not to touch the fan part of the battery cooling blower assembly.
    • Do not lift the battery cooling blower assembly using the wire harness.
    1. GTY1106162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
