DTC P0443-13: Evaporative Emission System Purge Control Valve "A" Circuit Open [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING GTS (ACTIVATE THE EVAP PURGE VSV)

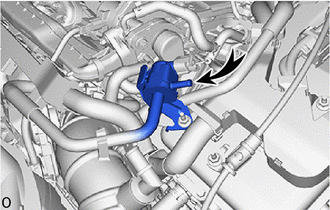

    GTY1103102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the fuel vapor feed hose assembly (canister side) of the purge VSV (No. 1 vacuum switching valve assembly).
    2. Put the engine in Inspection Mode (Maintenance Mode).

      Powertrain > Hybrid Control > Utility

      Tester Display
      Inspection Mode
    3. Start the engine.
    4. Enter the following menus.

      Powertrain > Engine > Active Test

      Tester Display
      Activate the EVAP Purge VSV
    5. When the purge VSV (No. 1 vacuum switching valve assembly) is operated using the GTS, check whether the port of the purge VSV (No. 1 vacuum switching valve assembly) applies suction your finger.

      OK

      GTS Operation Specified Condition
      ON Purge VSV (No. 1 vacuum switching valve assembly) port applies suction to finger
      OFF Purge VSV (No. 1 vacuum switching valve assembly) port applies no suction to finger

      HINT:

      Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [11/2022 - ]

    Result:

    NG

    See step  2

  2. INSPECT PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY)

    Refer to INSPECTION [11/2022 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY). Refer to  REMOVAL [11/2022 - ]

    Result:

    OK

    See step  3

  3. CHECK TERMINAL VOLTAGE (POWER SOURCE OF PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY))
    GTY1103929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Purge VSV (No. 1 Vacuum Switching Valve Assembly))
    1. Disconnect the purge VSV (No. 1 vacuum switching valve assembly) connector.
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      C30-1 (+B) - Body ground Ignition switch ON 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI-MAIN NO. 1 RELAY - PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY))

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (PURGE VSV (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY) - ECM)
    1. Disconnect the purge VSV (No. 1 vacuum switching valve assembly) connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C30-2 (EVP1) - C139-66 (PRG) Always Below 1 Ω
      C30-2 (EVP1) or C139-66 (PRG) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [11/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
