Catalyst Location
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

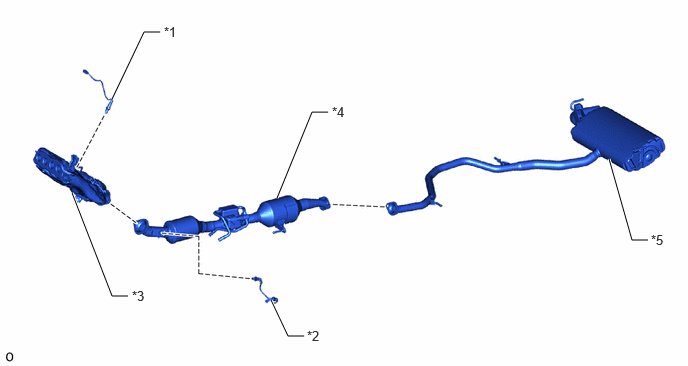

| *1 | Air Fuel Ratio Sensor (Sensor 1) | *2 | Air Fuel Ratio Sensor (Sensor 2) |
| *3 | Exhaust Manifold (TWC: Front Catalyst) | *4 | Front Exhaust Pipe Assembly (TWC: Rear Catalyst) |
| *5 | Tail Exhaust Pipe Assembly | - | - |
NOTE:
When replacing the exhaust manifold (*3) and the front exhaust pipe assembly (*4) in order to replace the three-way catalytic converter, it is not necessary to replace the air fuel ratio sensor (sensor 1) (*1) and the air fuel ratio sensor (sensor 2) (*2).
