Removal [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 7

REMOVE ENGINE WIRE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

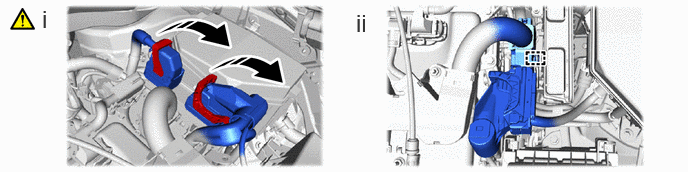

Raise the 2 lock levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.
NOTE:
After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
Disengage the clamp.

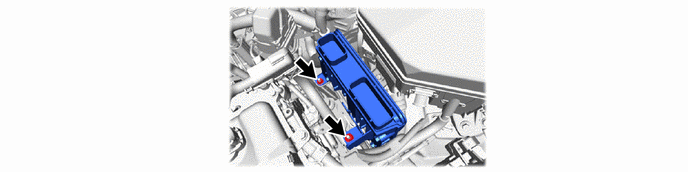

REMOVE ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the ECM has been struck or dropped, replace it.

REMOVE NO. 2 ECM BRACKET

REMOVE NO. 1 ECM BRACKET
