Removal [11/2022 - ]: Procedure

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2022 - 11/2023] , or refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

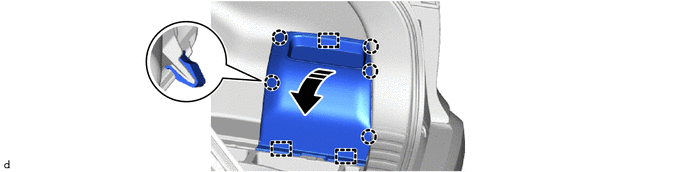

REMOVE SIDE DECK TRIM SERVICE HOLE COVER

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

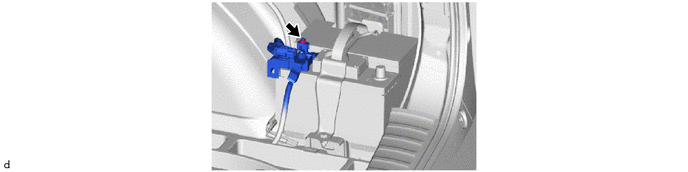

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

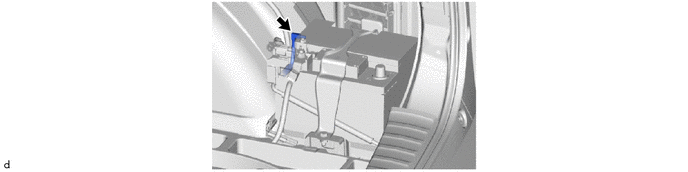

DISCONNECT BATTERY HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

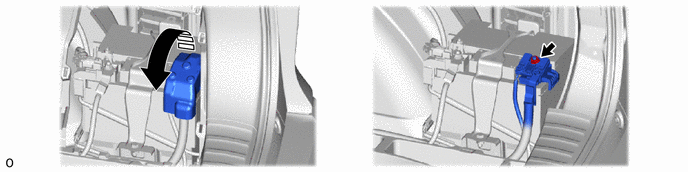

DISCONNECT POSITIVE AUXILIARY BATTERY TERMINAL

Remove in this Direction

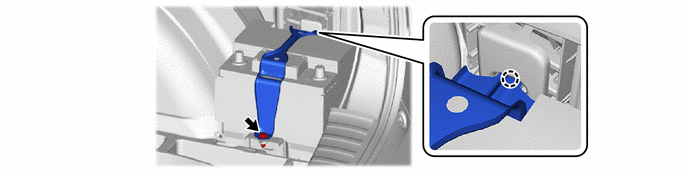

REMOVE BATTERY CLAMP

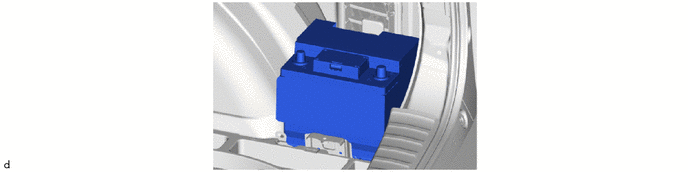

REMOVE AUXILIARY BATTERY
