Removal [11/2022 - ]: Procedure

  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

  2. REMOVE OIL PAN SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 56 [09/2021 - 11/2023] , or refer to PROCEDURE - Step 56 [11/2023 - ]
  3. REMOVE OIL STRAINER SUB-ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 57 [09/2021 - 11/2023] , or refer to PROCEDURE - Step 57 [11/2023 - ]

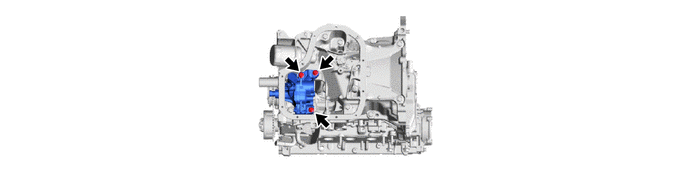

  4. REMOVE OIL PUMP ASSEMBLY
    1. GTY1030561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
