Removal [09/2021 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

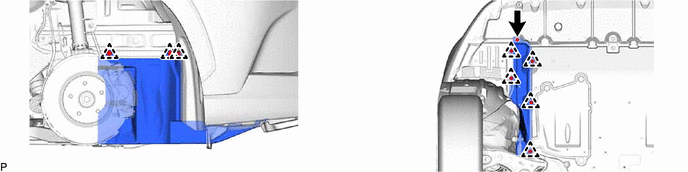

    1. GTY1029599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE V-RIBBED BELT

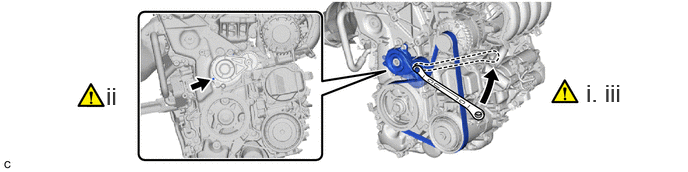

    1. GTY1029051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Release the V-ribbed belt tension by turning the V-ribbed belt tensioner assembly counterclockwise.
      2. Turn the V-ribbed belt tensioner assembly counterclockwise to align its holes, and then insert a 5 mm hexagon wrench to secure the V-ribbed belt tensioner assembly.
      3. Remove the V-ribbed belt.
