Removal [09/2021 - 11/2022]: Procedure

  1. DRAIN DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR WHEEL

    Refer to REMOVAL [09/2021 - ]

  3. REMOVE REAR SKID CONTROL SENSOR
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  4. REMOVE REAR AXLE SHAFT NUT

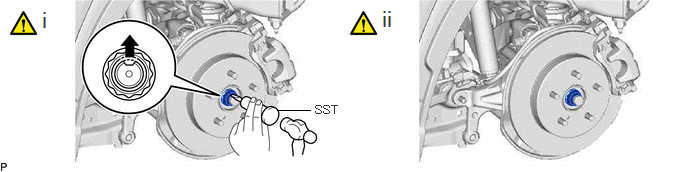

    1. GTY1033597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a hammer, release the staked part of the rear axle shaft nut.
        • SST: 09930-00010
        NOTE:

        Loosen the staked part of the rear axle shaft nut completely, otherwise the threads of the rear drive shaft assembly may be damaged.

      2. Using a 30 mm deep socket wrench, remove the rear axle shaft nut while applying the brakes.
  5. SEPARATE REAR FLEXIBLE HOSE

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side with Height Control Sensor)

    Refer to REMOVAL [09/2021 - ]

  7. REMOVE REAR STABILIZER LINK ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2
  8. SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 3
  9. REMOVE REAR COIL SPRING

    Refer to PROCEDURE - Step 4

  10. REMOVE REAR LOWER COIL SPRING INSULATOR

    Refer to PROCEDURE - Step 6

  11. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  12. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 8
  13. SEPARATE REAR UPPER CONTROL ARM ASSEMBLY

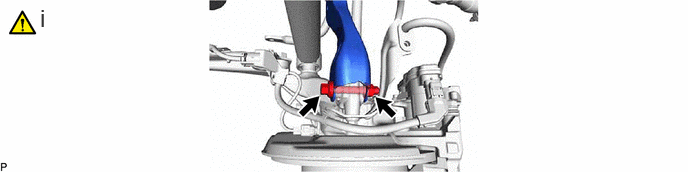

    1. GTY1034730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt and nut, and separate the rear upper control arm assembly from the rear axle carrier sub-assembly.
        NOTE:

        Loosen the bolt with the nut secured.

  14. REMOVE REAR DRIVE SHAFT ASSEMBLY

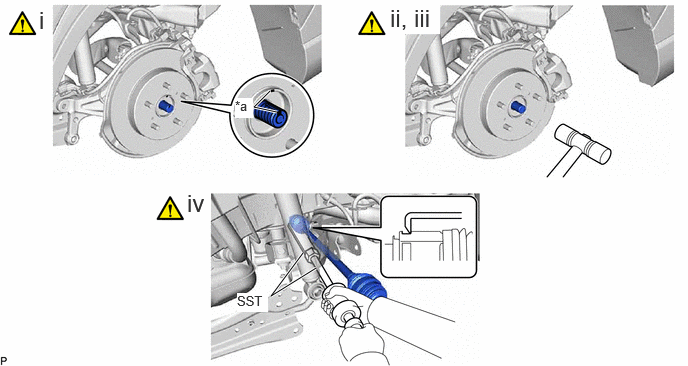

    1. GTY1033639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Put matchmarks on the rear drive shaft assembly and the rear axle hub and bearing assembly.
      2. Using a plastic hammer, separate the rear drive shaft assembly from the rear axle hub and bearing assembly.
        NOTE:
        • Do not push the rear axle hub and bearing assembly towards the outside of the vehicle any further than necessary.
        • Do not damage the rear drive shaft outboard joint boot.
        • Do not deform the rear disc brake dust cover sub-assembly.
        • Do not damage the deflector.
      3. If it is difficult to separate the rear drive shaft assembly rear axle hub and bearing assembly, tap the end of the rear drive shaft assembly using a brass bar and a hammer.
      4. Using SST, remove the rear drive shaft assembly from the rear differential carrier assembly.
        • SST: 09520-01011
        • SST: 09520-20010
          1. 09521-02010
          2. 09521-02040
          3. 09521-02060
        NOTE:
        • Do not damage the rear drive shaft oil seal.
        • Do not damage the rear drive shaft inboard joint boot.
        • Do not drop the rear drive shaft assembly.
        • When removing the rear drive shaft assembly, keep it level.
  15. REMOVE REAR DRIVE SHAFT INBOARD JOINT SHAFT SNAP RING
    1. GTY1034595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, remove the rear drive shaft inboard joint shaft snap ring.
