Removal [09/2021 - 11/2022]: Procedure

  1. PRECAUTION
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.

    Refer to PRECAUTION [09/2021 - 11/2022]
  2. REMOVE REAR WHEEL

    Refer to REMOVAL [09/2021 - ]

  3. PERFORM REAR BRAKE PAD REPLACEMENT MODE

    Refer to TEST MODE PROCEDURE [09/2021 - 11/2022]

  4. DRAIN BRAKE FLUID
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.
  5. DISCONNECT REAR FLEXIBLE HOSE

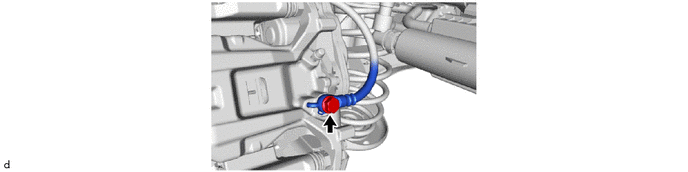

    1. GTY1035936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 4
  7. REMOVE PARKING BRAKE ACTUATOR ASSEMBLY
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 5
  8. REMOVE DISC BRAKE CYLINDER ASSEMBLY

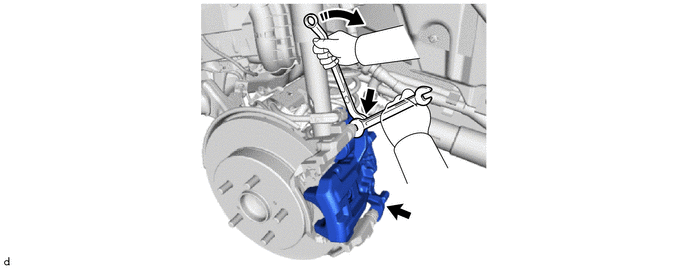

    1. GTY1035700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DICSC BRAKE PAD KIT

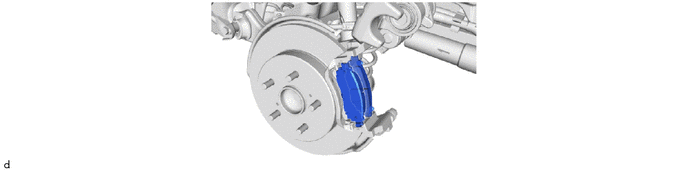

    1. GTY1035242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 7
  11. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.

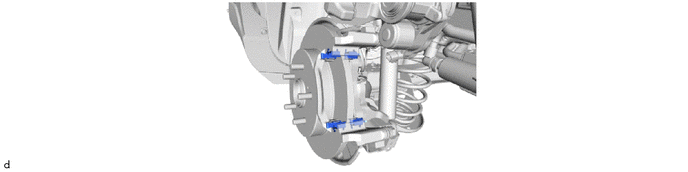

    1. GTY1035699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN

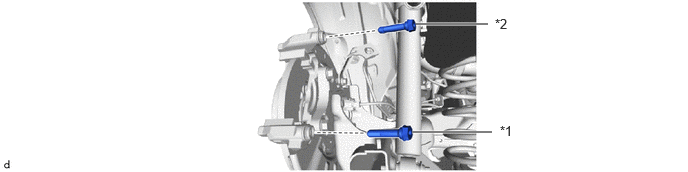

    1. GTY1035517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear No. 1 Disc Brake Cylinder Slide Pin *2 Rear No. 2 Disc Brake Cylinder Slide Pin
  13. REMOVE REAR DISC BRAKE CYLINDER SLIDE BUSH
    1. GTY1034115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bush from the rear No. 2 disc brake cylinder slide pin.
        NOTE:

        Do not damage the rear No. 2 disc brake cylinder slide pin.

  14. REMOVE REAR DISC BRAKE BUSHING DUST BOOT

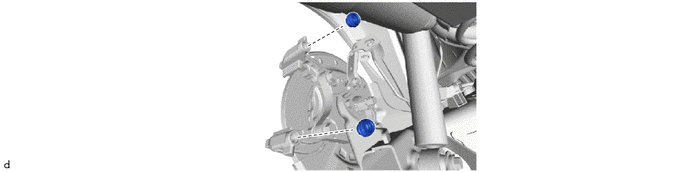

    1. GTY1035691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DISC BRAKE CYLINDER MOUNTING

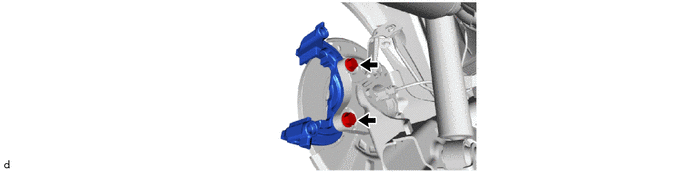

    1. GTY1035689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR DISC

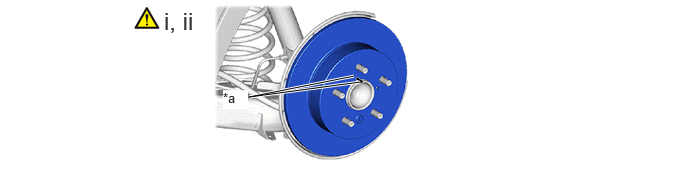

    1. GTY1035114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. Put matchmarks on the rear disc and rear axle hub and bearing assembly.
      2. Remove the rear disc.
