Removal [09/2021 - 11/2022]: Procedure

PRECAUTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.

REMOVE REAR WHEEL
Refer to REMOVAL [09/2021 - ]
PERFORM REAR BRAKE PAD REPLACEMENT MODE
Refer to TEST MODE PROCEDURE [09/2021 - 11/2022]

DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

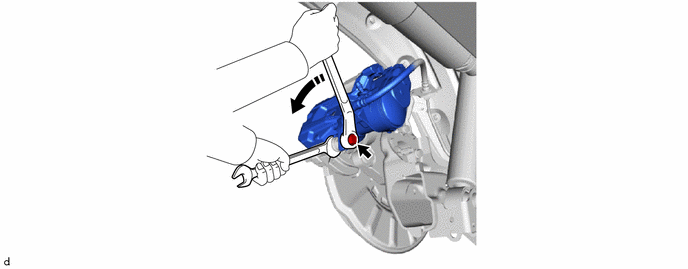

SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

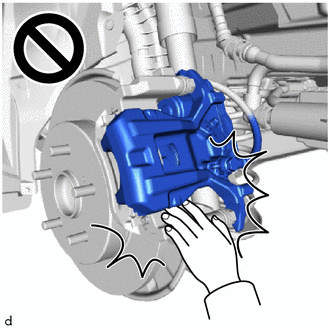

WARNING:

Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR DISC BRAKE PAD KIT

REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

Rear Disc Brake Anti-squeal Shim

Rear No. 2 Disc Brake Anti-squeal Shim

Remove the rear disc brake anti-squeal shim from the rear disc brake pad.
Remove the rear disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.

Using a screwdriver, remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
