Disassembly [08/2015 - 08/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2021 Toyota 4Runner, 2020 Toyota 4Runner, 2019 Toyota 4Runner, 2018 Toyota 4Runner, and 2017 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE RADIATOR GRILLE

    Refer to PROCEDURE - Step 4

  2. REMOVE NO. 2 ENGINE ROOM WIRE

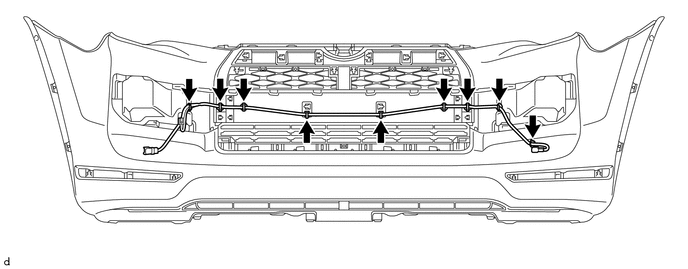

    1. Disconnect each connector.
    2. Detach the 9 clamps to remove the No. 2 engine room wire.
      GTY442484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 ULTRASONIC SENSOR

    Refer to PROCEDURE - Step 4

  4. REMOVE ULTRASONIC SENSOR CLIP

    Refer to PROCEDURE - Step 5

  5. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER

    Refer to PROCEDURE - Step 6

  6. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET (w/ License Plate Bracket)
    1. Remove the 2 screws and front bumper extension mounting bracket.
      GTY441101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT BUMPER SIDE MOULDING LH
    1. Remove the 2 outside moulding retainers.
      GTY441094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw to remove the front bumper side moulding LH.
  8. REMOVE FRONT BUMPER SIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE FRONT BUMPER LOWER SIDE SUPPORT LH
    1. Remove the 2 clips.
      GTY437803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 5 claws to remove the front bumper lower side support LH.
  10. REMOVE FRONT BUMPER LOWER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE NO. 2 RADIATOR GRILLE MOULDING

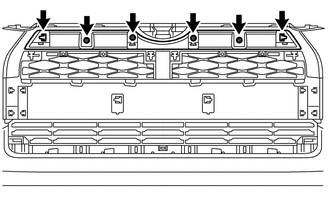

    1. Remove the 2 outside moulding retainers and 4 screws.
      GTY451730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

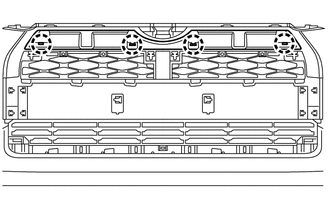

    2. Detach the 4 claws to remove the No. 2 radiator grille moulding.
      GTY454154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT BUMPER SIDE MOULDING SUB-ASSEMBLY LH
    1. Remove the 3 outside moulding retainers.
      GTY441095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Detach the 2 claws and guide to remove the front bumper side moulding sub-assembly LH.
  13. REMOVE FRONT BUMPER SIDE MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT BUMPER MOULDING SUB-ASSEMBLY

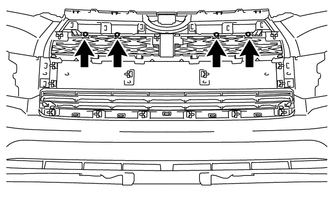

    1. Remove the 4 screws.
      GTY441096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

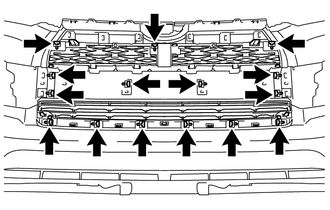

    2. Remove the 15 outside moulding retainers.
      GTY437825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

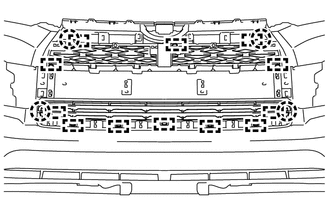

    3. Detach the 12 guides and 4 claws to remove the front bumper moulding sub-assembly.
      GTY427153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FOG LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 5

  16. REMOVE FOG LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
