Removal [08/2020 - ]: Procedure

  1. REMOVE FRONT BUMPER COVER (w/o Intuitive Parking Assist System)

    Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 - ]

  2. REMOVE FRONT BUMPER COVER (w/ Intuitive Parking Assist System)

    Refer to REMOVAL [08/2019 - 08/2021] , or refer to REMOVAL [08/2021 - ]

  3. REMOVE FRONT BUMPER REINFORCEMENT STOPPER RH (for RH Side)

    Refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - ]

  4. REMOVE FRONT BUMPER SIDE MOULDING SUB-ASSEMBLY LH (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 14 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - ]

  5. REMOVE FOG LIGHT ASSEMBLY LH

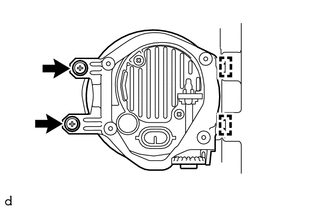

    1. Remove the 2 screws.
      GTY990035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guides to remove the fog light assembly LH.
