Removal [07/2020 - ]: Procedure

  1. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE UNDER COVER HEAT INSULATOR

    Refer to PROCEDURE - Step 4 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

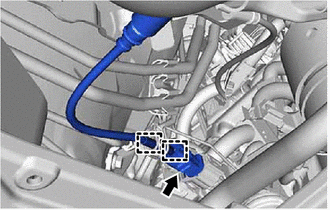

    1. Disengage the 2 wire harness clamps.
      GTY1000310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor (for sensor 2) connector.

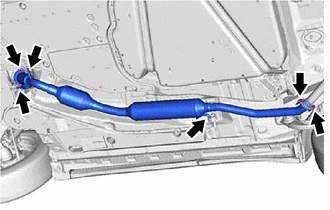

    3. Remove the 2 bolts and 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst) and tail exhaust pipe assembly.
      GTY1000309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.
    5. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  5. REMOVE COWL VENTILATOR SPLASH SHIELD

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  6. REMOVE COWL VENTILATOR PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  7. REMOVE AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to REMOVAL [07/2020 - ]

  8. REMOVE WIRING HARNESS CLAMP BRACKET
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove the bolt and wiring harness clamp bracket.
      GTY880676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. SEPARATE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

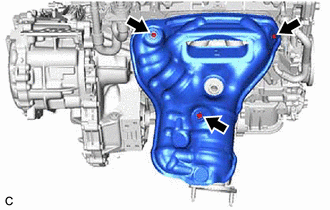

    1. Remove the 3 bolts and separate the No. 1 exhaust manifold heat insulator from the exhaust manifold (TWC: Front Catalyst).
      GTY1000393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. SEPARATE NO. 1 FRONT FLOOR HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

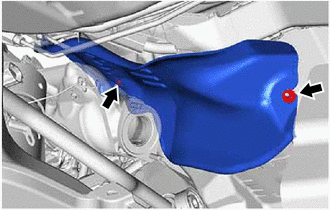

    1. Remove the 2 nuts and separate the No. 1 front floor heat insulator from the vehicle body.
      GTY1000401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE MANIFOLD STAY
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove the bolt, nut and manifold stay from the exhaust manifold (TWC: Front Catalyst) and cylinder block sub-assembly.
      GTY880713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. SEPARATE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)

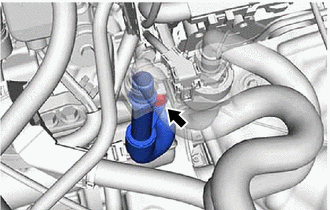

    1. Remove the bolt to separate the No. 2 water by-pass pipe sub-assembly.
      GTY1000398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

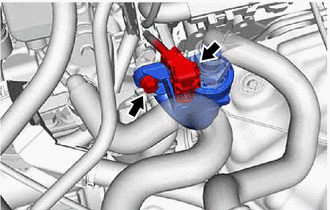

    2. Disconnect the flow shutting valve (water by-pass hose assembly) connector.
      GTY1000397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt to separate the flow shutting valve (water by-pass hose assembly).
  13. REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove the 7 nuts and separate the exhaust manifold (TWC: Front Catalyst) from the cylinder head sub-assembly.
      GTY880714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 exhaust manifold heat insulator, exhaust manifold (TWC: Front Catalyst) and No. 1 front floor heat insulator.
    3. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
      GTY880706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

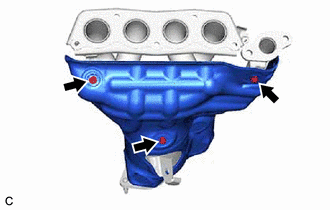

    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold (TWC: Front Catalyst).
      GTY1000395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
