Removal [07/2020 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

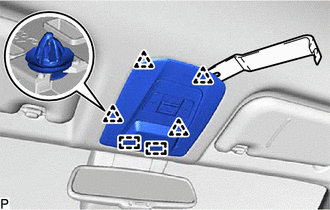

    1. Using a moulding remover, disengage the 4 clips.
      GTY987965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect each connector to remove the map light assembly.
