Removal [07/2020 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  3. REMOVE REAR SEAT HEADREST ASSEMBLY
    1. Remove the 2 rear seat headrest assemblies.
  4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
    1. Remove the rear seat center headrest assembly.
  5. REMOVE REAR SEAT CUSHION ASSEMBLY
    1. Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.
      NOTE:

      Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.

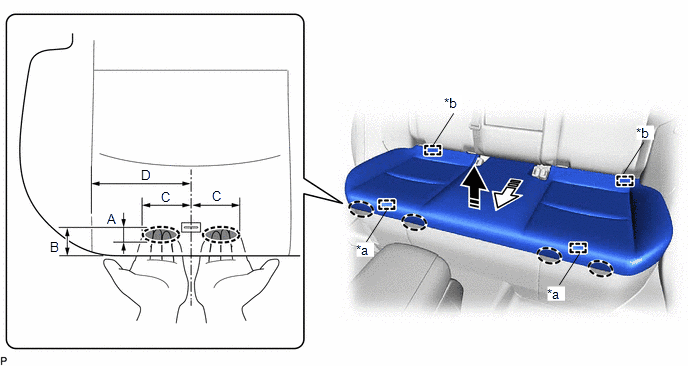

      GTY1012199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook (Front Side) *b Rear Seat Cushion Frame Hook (Rear Side)
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -

      Standard Measurement

      Area Measurement Area Measurement
      A 30 mm (1.18 in.) B 60 mm (2.36 in.)
      C 80 mm (3.15 in.) D 150 mm (5.91 in.)
    2. Disengage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly as shown in the illustration and remove the rear seat cushion assembly.
      NOTE:

      Be careful not to damage the vehicle body.

  6. REMOVE REAR SEAT CUSHION LOCK HOOK
    1. Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

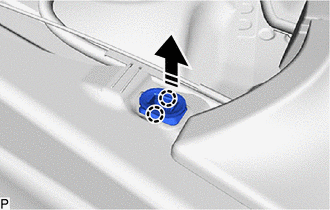

      GTY1012222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

  7. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Remove the nut and disconnect the floor anchor of the rear center seat outer belt assembly.

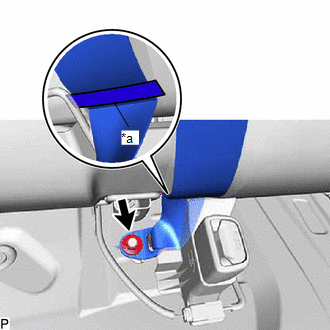

      GTY1012409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Band
    2. Remove the floor anchor part of the rear center seat outer belt assembly from the band of the rear seatback assembly RH.
  8. REMOVE REAR SEATBACK ASSEMBLY RH
    1. Fold the rear seatback assembly RH forward.
    2. Disengage the 3 clips.

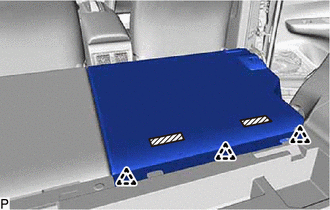

      GTY1010779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    3. Disengage the 2 fasteners.
    4. Remove the 2 bolts.

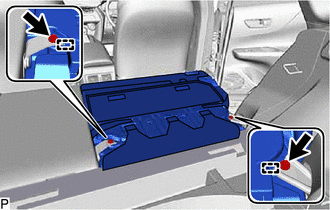

      GTY1010679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides and remove the rear seatback assembly RH.
      NOTE:

      Be careful not to damage the vehicle body.

  9. REMOVE REAR SEATBACK ASSEMBLY LH
    1. Fold the rear seatback assembly LH forward.
    2. Disengage the 2 clips.

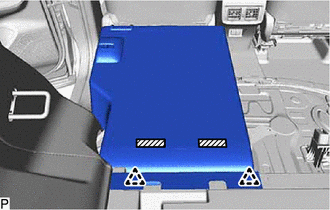

      GTY1011455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fastener
    3. Disengage the 2 fasteners.
    4. Remove the 2 bolts.

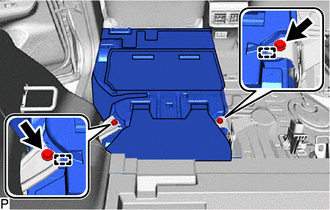

      GTY1010664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 guides and remove the rear seatback assembly LH.
      NOTE:

      Be careful not to damage the vehicle body.
