- REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE HOOD LOCK ASSEMBLY

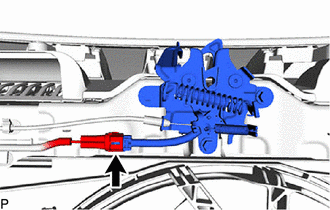

- Disconnect the connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

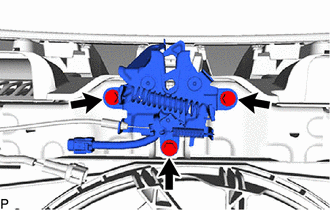

- Remove the 3 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the hood lock control cable assembly to remove the hood lock assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 11
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
- Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT TIRE LH
Refer to PROCEDURE - Step 1
- REMOVE FRONT FENDER LINER LH
Refer to PROCEDURE - Step 2
- REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

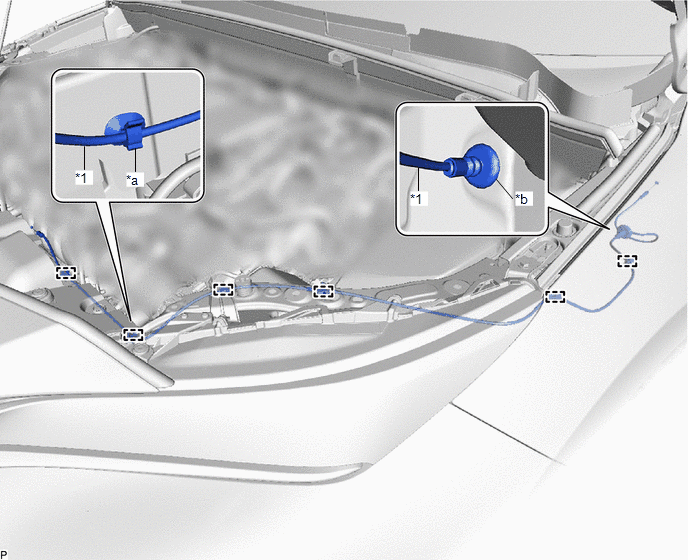

- Using a screwdriver, disengage each clamp and the grommet as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Hood Lock Control Cable Assembly |
- |
- |
| *a |
Clamp |
*b |
Grommet |
HINT:
Tape the screwdriver tip before use.
- Pull the hood lock control cable assembly from the engine compartment to remove it.
