Removal [07/2020 - ]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE UPPER CONSOLE BOX INSULATOR

    Refer to PROCEDURE - Step 32 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 31 [10/2022 - ]

  3. REMOVE WIRELESS CHARGER ASSEMBLY

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  4. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

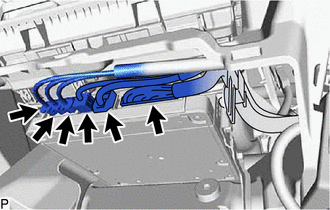

    1. Disconnect each connector.
      GTY988602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

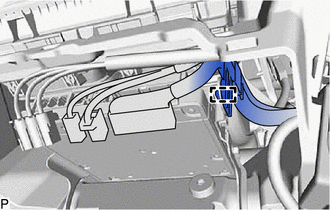

    2. Disengage the clamp.
      GTY988604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

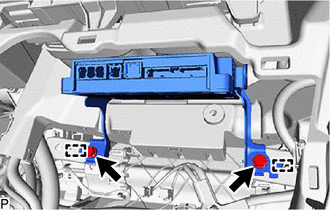

    3. Remove the 2 bolts.
      GTY988605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides and remove the DCM (telematics transceiver) with bracket.
  5. REMOVE NO. 2 TELEPHONE BRACKET

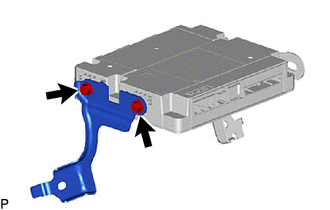

    1. Remove the 2 screws and No. 2 telephone bracket.
      GTY988608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 TELEPHONE BRACKET
    1. GTY988610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws and No. 1 telephone bracket.

  7. REMOVE DCM (TELEMATICS TRANSCEIVER)
