Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE UPPER CONSOLE BOX INSULATOR

    Refer to PROCEDURE - Step 32

  3. REMOVE WIRELESS CHARGER ASSEMBLY

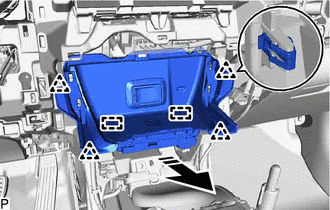

    1. Disengage the 4 clips and 2 guides as shown in the illustration.
      GTY988268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect each connector.
    3. Disengage the clamp to remove the wireless charger assembly.
  4. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
