Removal [07/2020 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

    Refer to PROCEDURE - Step 12 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

  2. REMOVE FRONT PILLAR GARNISH

    Refer to PROCEDURE - Step 15 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - ]

  3. REMOVE NO. 1 SPEAKER HOLE COVER

    Refer to PROCEDURE - Step 36 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 35 [10/2022 - ]

  4. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    NOTE:

    Do not touch the speaker cone.

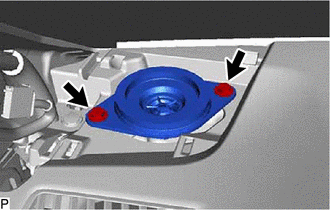

    1. Remove the 2 screws.
      GTY987342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
