Removal [07/2020 - 10/2022]: Procedure
- RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
See step 1
- REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [07/2020 - 10/2022]
- CHECK TERMINAL VOLTAGE
- Remove the No. 2 inverter protector.
Refer to PROCEDURE - Step 8
- Disconnect the engine room main wire.
Refer to PROCEDURE - Step 9
- Remove the connector cover assembly.
Refer to PROCEDURE - Step 10
- Check the terminal voltage.
Refer to PROCEDURE - Step 11
- Install the connector cover assembly.
Refer to PROCEDURE - Step 8
- Connect the engine room main wire.
Refer to PROCEDURE - Step 16
- Install the No. 2 inverter protector.
Refer to PROCEDURE - Step 17
- Remove the No. 2 inverter protector.
- REMOVE FRONT FENDER FRONT SPLASH SHIELD LH
Refer to PROCEDURE - Step 7
- REMOVE FRONT FENDER FRONT SPLASH SHIELD RH
Refer to PROCEDURE - Step 8
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10
- REMOVE FRONT FENDER APRON SEAL RH
Refer to PROCEDURE - Step 12

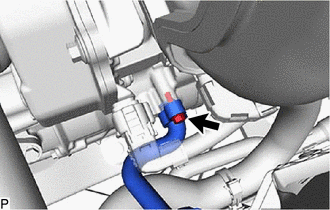

- DISCONNECT SUCTION HOSE SUB-ASSEMBLY
- DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

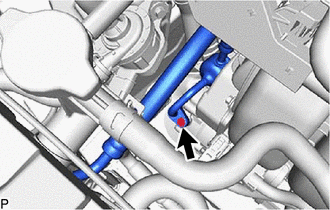

- Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor with motor assembly.
- Remove the O-ring from the No. 1 cooler refrigerant discharge hose.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.
- Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor with motor assembly.
- REMOVE COMPRESSOR WITH MOTOR ASSEMBLY

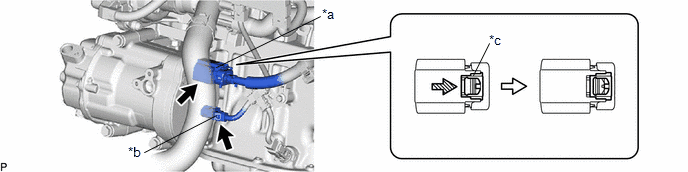

- Slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.
*a Connector (A) *b Connector (B) *c Green-colored Lock - - Slide - - WARNING:Make sure to wear insulated gloves.
NOTE:Insulate the disconnected terminals and connector (A) with insulating tape.
- Disconnect the connector (B).

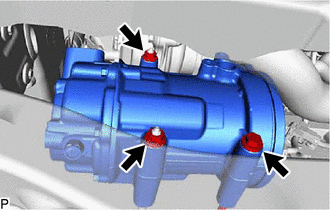

- Remove the bolt and 2 nuts.

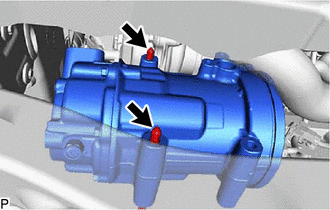

- Using an E8 "TORX" socket wrench, remove the 2 stud bolts.

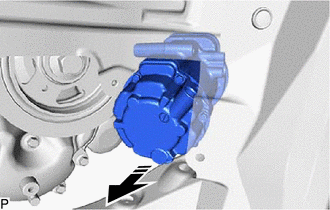

- Remove the compressor with motor assembly as shown in the illustration.
Remove in this Direction
- Slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.
