Installation [07/2020 - ]: Procedure

  1. INSTALL NO. 6 FUEL TANK CUSHION

    HINT:

    Perform this procedure only when replacement of the No. 6 fuel tank cushion is necessary.

    1. Install 5 new No. 6 fuel tank cushions to the fuel tank assembly.
  2. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. Engage the 2 claws to install the No. 1 fuel tank protector sub-assembly to the fuel tank assembly.
  3. INSTALL NO. 2 FUEL TANK PROTECTOR
    1. Engage the 2 claws to install the No. 2 fuel tank protector to the fuel tank assembly.
  4. INSTALL FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. Engage the 2 clamps to install the fuel tank vent hose sub-assembly to the fuel tank assembly.
    2. Connect the fuel tank evaporation tube sub-assembly to the fuel tank vent hose sub-assembly.

      Refer to PRECAUTION [07/2020 - ]

  5. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Engage the clamp to install the fuel tank main tube sub-assembly to the fuel tank assembly.
  6. INSTALL FUEL TANK ASSEMBLY
    WARNING:

    The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair information, or the fuel tank assembly may fall off the engine lifter.

    GTY563885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Set the fuel tank assembly on an engine lifter.
      NOTE:

      Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

    2. Using the engine lifter, slowly raise the fuel tank assembly, and then temporarily install the fuel tank assembly, No. 1 fuel tank band sub-assembly and No. 2 fuel tank band sub-assembly with the 4 bolts.
      GTY1000735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to drop the fuel tank assembly.
      • When installing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.

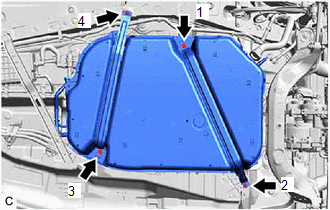

    3. Tighten the 4 bolts in the order shown in the illustration.

      Torque: 45 N.m (459 kgf/cm, 33 ft.lbf)

  7. CONNECT FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
    1. Connect the front lower No. 1 floor heat insulator to the No. 2 fuel tank band sub-assembly with the clip.
  8. CONNECT FUEL TANK FILLER PIPE ASSEMBLY
    1. Connect the fuel tank filler pipe assembly to the fuel tank assembly.

      Refer to PRECAUTION [07/2020 - ]

  9. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Connect the fuel tank main tube sub-assembly to the fuel pipe.

      Refer to PRECAUTION [07/2020 - ]

    2. Engage the clamp.
  10. CONNECT FUEL TANK BREATHER TUBE
    1. Connect the fuel tank breather tube to the fuel tank breather tube sub-assembly.

      Refer to PRECAUTION [07/2020 - ]

  11. CONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
    1. Connect the fuel tank vent hose sub-assembly to the fuel vapor containment valve (close tank with bolt valve assembly).

      Refer to PRECAUTION [07/2020 - ]

  12. INSTALL FRONT CENTER FLOOR COVER RH
    1. Install the front center floor cover RH to the vehicle body with the 2 clips.
  13. INSTALL FRONT FLOOR COVER LH
    1. Tighten the 7 clips to install the front floor cover LH to the vehicle body.
    2. Install the clip, 2 bolts and 4 screws.

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  14. INSTALL ENGINE UNDER COVER HEAT INSULATOR
    1. Install the engine under cover heat insulator to the vehicle body with the 2 clips.
  15. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6

  16. ADD FUEL
  17. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]
