Installation [07/2020 - ]: Procedure

1. Using an 8 mm socket wrench, install the engine oil level sensor to the engine balancer assembly with the 2 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. Install a new clip to the engine oil level sensor.
3. Connect the engine oil level sensor connector.

Refer to PROCEDURE - Step 12 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 12 [10/2022 - ]

Refer to PROCEDURE - Step 5 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 5 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 5 [10/2023 - ]

Refer to PROCEDURE - Step 6 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 6 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 6 [10/2023 - ]

Refer to PROCEDURE - Step 1 [07/2020 - 10/2023] , or refer to PROCEDURE - Step 1 [10/2023 - ]

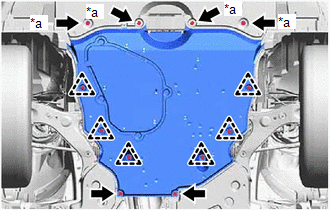

1. Install the No. 2 engine under cover assembly with the 4 bolts, 2 screws and 6 clips.

   Bolt

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Bolt
