Installation [07/2020 - ]: Procedure

  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.
    2. Engage the clamp.
    3. Engage the 2 pins and 2 clips.

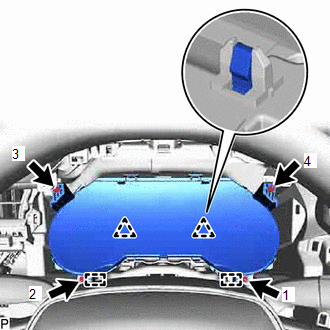

      Fig 1: Combination Meter Assembly Tightening Sequence
      GTY987949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the combination meter assembly with the 4 screws.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

      HINT:

      Tighten the screws in the order shown in the illustration.

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

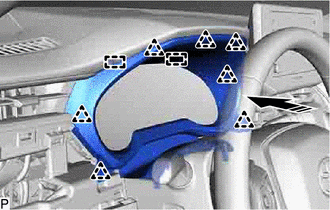

    1. Engage the 2 guides and 7 clips as shown in the illustration.
      GTY987531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

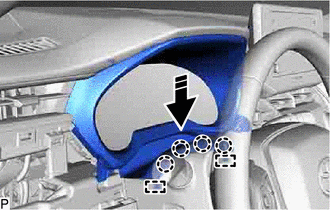

    2. Engage the 2 guides and 4 claws as shown in the illustration to install the instrument cluster finish panel assembly.
      GTY988389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL UPPER CONSOLE COVER

    Refer to PROCEDURE - Step 13

  4. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 22 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - ]

  5. INSTALL NO. 2 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 26 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - ]

  6. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 1

  7. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  8. INSTALL BATTERY HOLE COVER

    Refer to PROCEDURE - Step 57 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 57 [10/2022 - ]

  9. INSTALL REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 4

  10. UPDATE ECU SECURITY KEY

    Refer to UPDATE ECU SECURITY KEY [07/2020 - ]

  11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

    Refer to WORK PROCEDURE [07/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - ]

    HINT:

    When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

    Refer to AUTOMATIC LEARNING CHART [07/2020 - ]

  12. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 19 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 19 [12/2021 - ]
