Installation [07/2020 - ]: Procedure

  1. INSTALL REAR CONSOLE ARMREST ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the rear console armrest assembly is necessary.

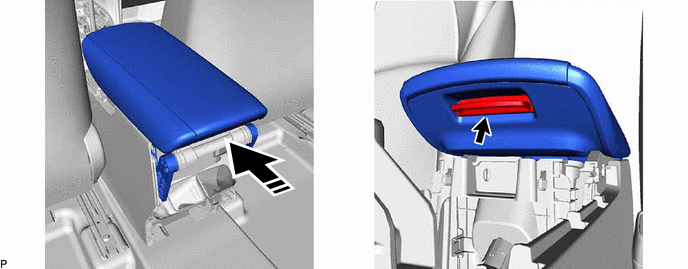

    1. As shown in the illustration, temporarily set the rear console armrest assembly and lock the lock.
      GTY1182077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -

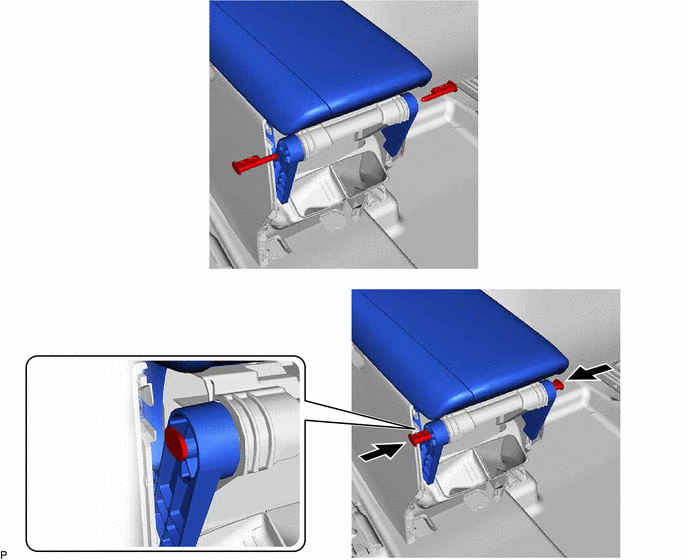

    2. Insert 2 new console compartment door hinge shafts in the orientation shown in the illustration.
      GTY1191186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push - -
    3. As shown in the illustration, push in the console compartment door hinge shafts from both sides at the same time to install the rear console armrest assembly.
    4. Make sure there is no clearance between the rear console armrest assembly and console compartment door hinge shaft.
  2. INSTALL CONSOLE BOX ASSEMBLY

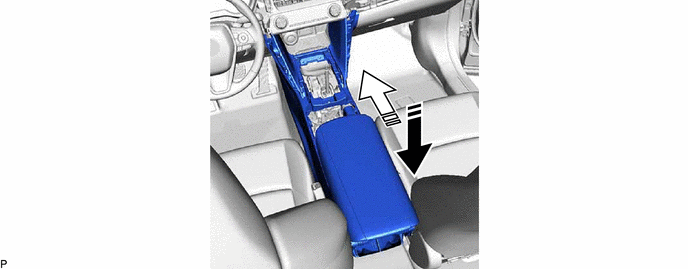

    1. Temporarily install the console box assembly as shown in the illustration.
      GTY1119182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1) Install in this Direction (2)

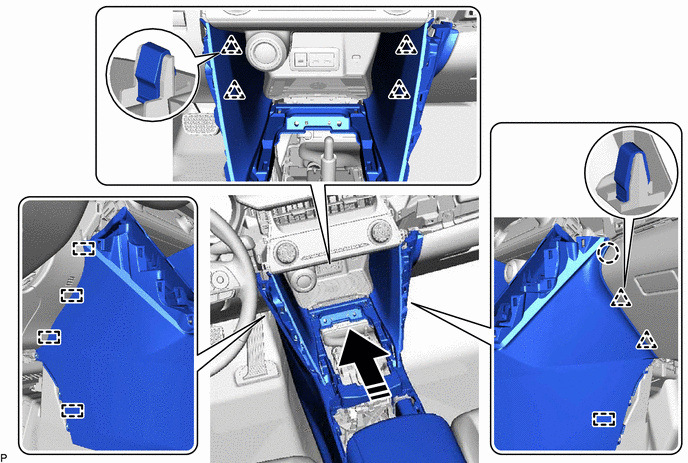

    2. Engage the 5 guides, 6 clips and claw as shown in the illustration.
      GTY1117893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
    3. Engage the clamp and connect the connector.
    4. Install the console box assembly with the 5 bolts.
  3. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
  4. INSTALL CONSOLE BOX POCKET
    1. Install the console box pocket.
  5. INSTALL FRONT NO. 2 CONSOLE BOX INSERT

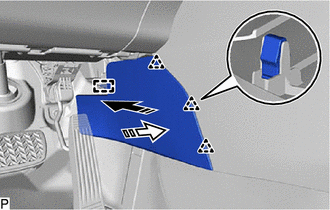

    1. Engage the guide and 3 clips as shown in the illustration to install the front No. 2 console box insert.
      GTY1012058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  6. INSTALL FRONT NO. 1 CONSOLE BOX INSERT

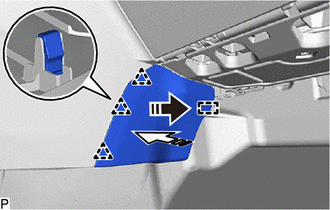

    1. Engage the guide and 3 clips as shown in the illustration to install the front No. 1 console box insert.
      GTY1011939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  7. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Connect the connector.

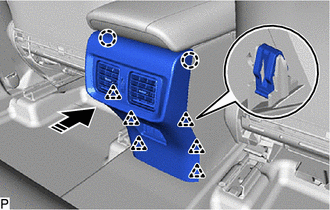

    2. Engage the 6 clips and 2 claws as shown in the illustration to install the console rear end panel sub-assembly.
      GTY1012232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  8. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
    1. Connect the connector.

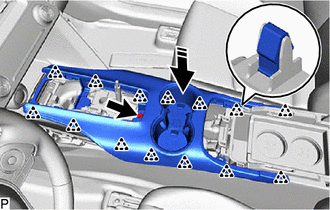

    2. Engage the 14 clips as shown in the illustration.
      GTY1013289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the console cup holder box sub-assembly with the bolt.
  9. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Connect the 3 connectors and engage the 2 clamps.

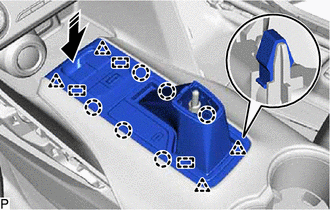

    2. Engage the 3 guides, 6 claws and 4 clips as shown in the illustration to install the upper console panel sub-assembly.
      GTY1012579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Move the shift lever to P.
  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL CONSOLE BOX ORNAMENT (w/o Seat Heater System)

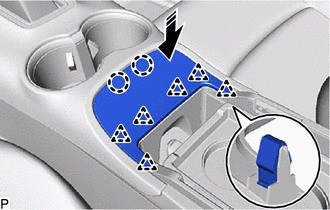

    1. Engage the 6 clips and 2 claws as shown in the illustration to install the console box ornament.
      GTY1013157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  12. INSTALL CONSOLE BOX ORNAMENT (w/ Seat Heater System)
    1. Connect the connector.

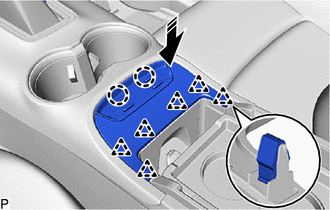

    2. Engage the 6 clips and 2 claws as shown in the illustration to install the console box ornament.
      GTY1013021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL UPPER CONSOLE COVER

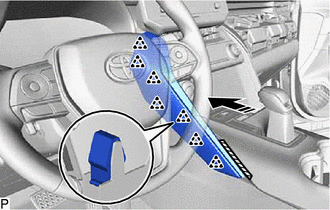

    1. Engage the 7 clips as shown in the illustration to install the upper console cover.
      GTY1012983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH

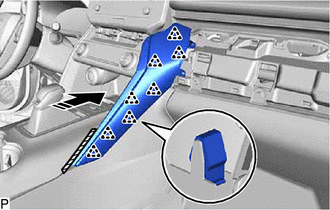

    1. Engage the 8 clips as shown in the illustration to install the upper No. 2 console panel garnish.
      GTY1012076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

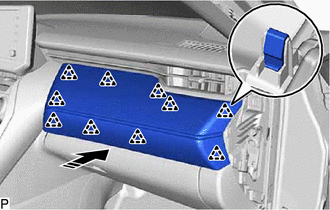

    1. Engage the 10 clips as shown in the illustration to install the No. 2 instrument cluster finish panel garnish.
      GTY1012204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL NO. 1 INSTRUMENT SIDE PANEL

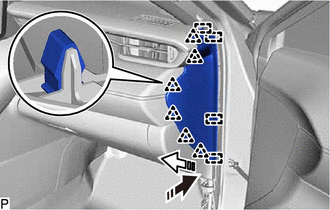

    1. Engage the 4 guides and 6 clips as shown in the illustration to install the No. 1 instrument side panel.
      GTY1011982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  17. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 1
