Installation [07/2020 - ]: Procedure

  1. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

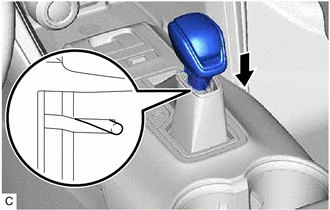

    1. Install the shift lever knob sub-assembly to the transmission floor shift assembly.
      GTY975299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

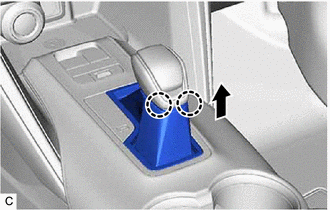

    2. Engage the 2 claws to connect the shifting hole cover sub-assembly as shown in the illustration.
      GTY975295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the shifting hole cover sub-assembly does not twist after installing the shift lever knob sub-assembly.
