Disassembly [07/2020 - ]: Procedure

  1. REMOVE SYMBOL EMBLEM
    1. Remove the 2 screws.
      GTY1013731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

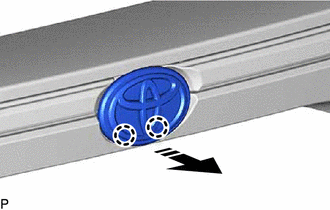

    2. Disengage the 2 claws to remove the symbol emblem as shown in the illustration.
      GTY1014350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE NO. 2 LIGHT WIRE

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE BACK DOOR GARNISH MOULDING PROTECTOR RH

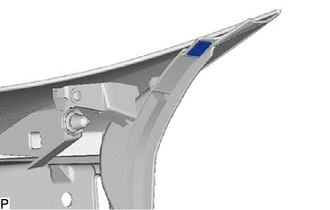

    1. Remove the back door garnish moulding protector RH.
      GTY1013717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  6. REMOVE BACK DOOR GARNISH UPPER MOULDING PROTECTOR

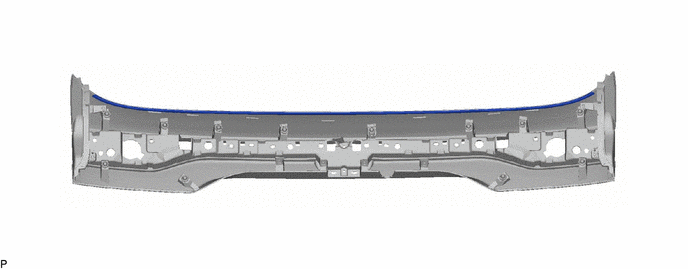

    1. Remove the back door garnish upper moulding protector.
      GTY1009574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BACK DOOR OUTSIDE GARNISH PROTECTOR

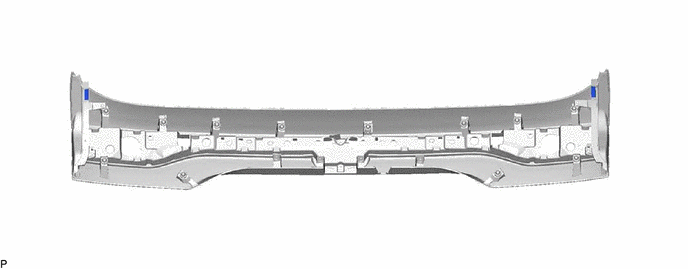

    1. Remove the 2 back door outside garnish protectors.
      GTY1117355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Center with Back Door Outside Garnish Protector:

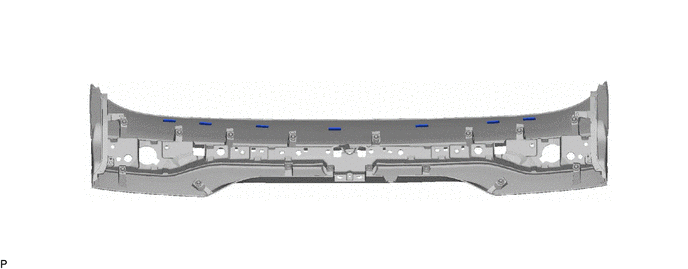

      1. Remove the 7 back door outside garnish protectors.
        GTY1112950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BACK DOOR GARNISH LOWER MOULDING PROTECTOR

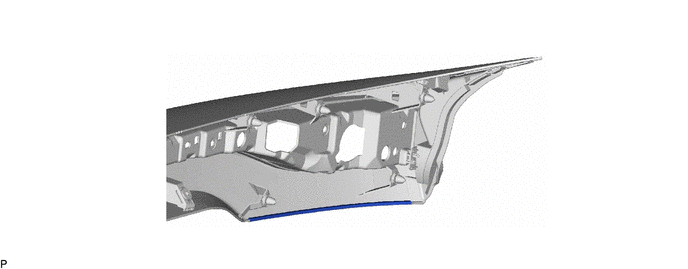

    1. Remove the back door garnish lower moulding protector.
      GTY1009572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.
