Removal [07/2020 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE SYMBOL EMBLEM

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 LIGHT WIRE

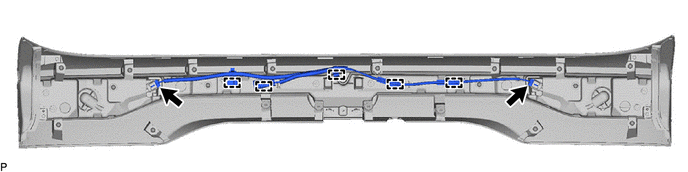

    1. Disconnect the 2 connectors.
      GTY985854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clamps to remove the No. 2 light wire.
  4. REMOVE REAR LIGHT ASSEMBLY

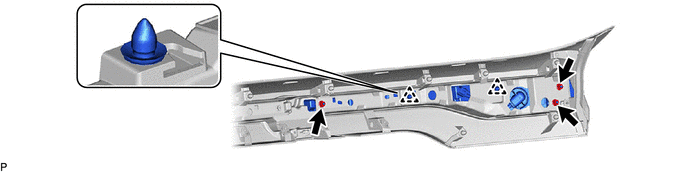

    1. Remove the 3 nuts.
      GTY985853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips to remove the rear light assembly.
