Reassembly [07/2020 - ]: Procedure

  1. INSTALL REAR BUMPER REINFORCEMENT

    HINT:

    Perform this procedure only when replacement of the rear bumper reinforcement is necessary.

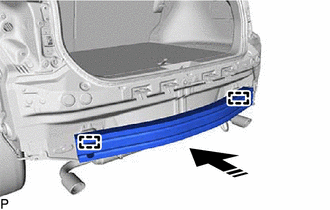

    1. Engage the 2 guides as shown in the illustration.
      GTY1006893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

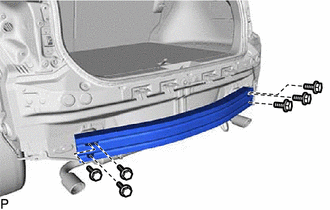

    2. Install the rear bumper reinforcement with the 6 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      GTY1014659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR BUMPER ENERGY ABSORBER

    HINT:

    Perform this procedure only when replacement of the rear bumper energy absorber is necessary.

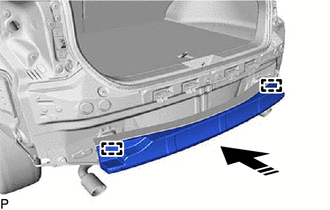

    1. Engage the 2 guides as shown in the illustration to install the rear bumper energy absorber.
      GTY1013740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL REAR BUMPER SIDE SUPPORT LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side support LH is necessary.

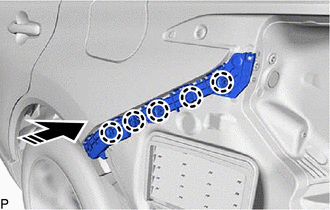

    1. Engage the 5 claws as shown in the illustration.
      GTY1013860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

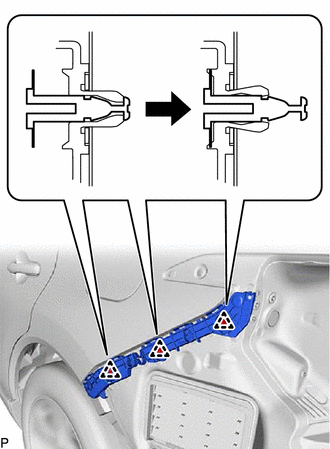

    2. Engage the 3 clips as shown in the illustration to install the rear bumper side support LH.
      GTY1007105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL REAR BUMPER UPPER RETAINER LH

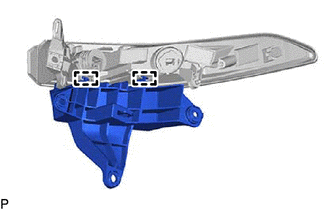

    1. Engage the 2 guides to install the rear bumper upper retainer LH to the rear combination light sub-assembly LH.
      GTY1014639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR BUMPER UPPER RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  7. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

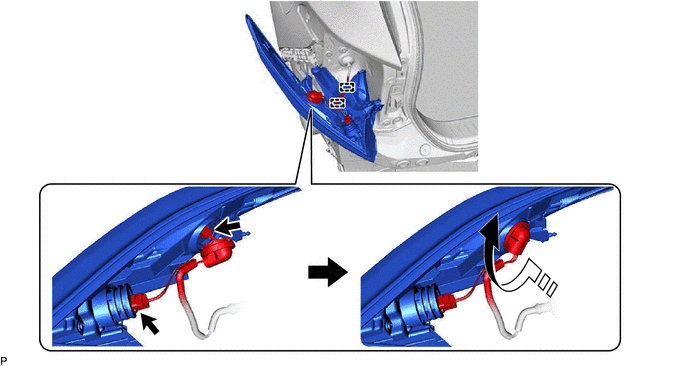

    1. Connect the 2 connectors.
      GTY1016008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connect in this Direction - -
    2. Turn the rear combination light cord as shown in the illustration to connect them as a unit.
    3. Engage the 2 clamps.

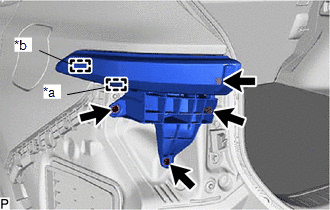

    4. Engage the guide and pin.
      GTY1115232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    5. Install the rear combination light assembly LH with the 4 screws.
  8. INSTALL REAR COMBINATION LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. INSTALL REAR BUMPER SIDE SEAL LH

    HINT:

    Perform this procedure only when replacement of the rear bumper side seal LH is necessary.

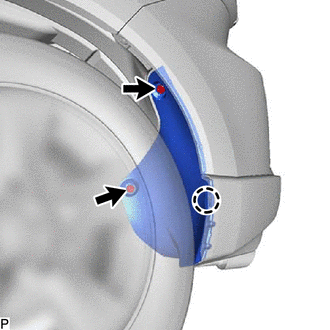

    1. Engage the claw.
      GTY1007102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper side seal LH with the 2 clips.
  10. INSTALL REAR BUMPER SIDE SEAL RH

    HINT:

    Perform this procedure only when replacement of the rear bumper side seal RH is necessary.

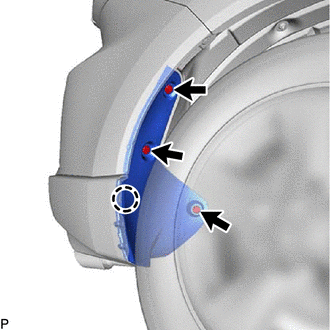

    1. Engage the claw.
      GTY1007101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper side seal RH with the 3 clips.
  11. INSTALL REAR BUMPER LOWER COVER

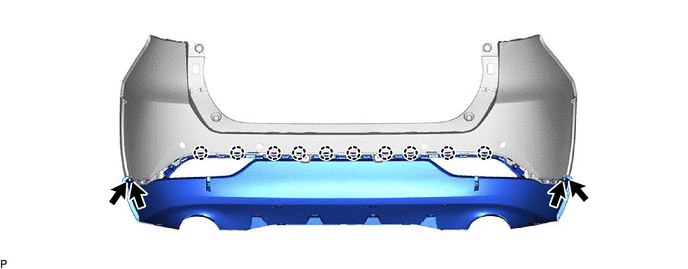

    1. Engage the 10 claws.
      GTY1015062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 clips.

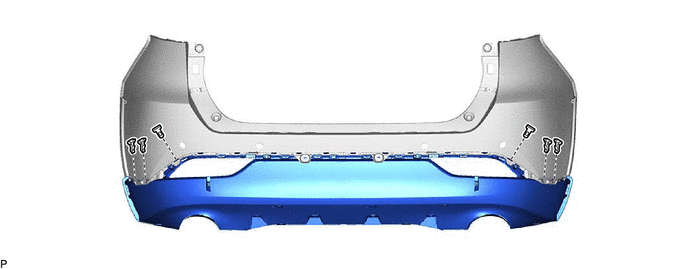

    3. Install the rear bumper lower cover to the rear bumper cover with the 6 clips.
      GTY1009622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR BUMPER PAD

    HINT:

    When installing the rear bumper pad, heat the rear bumper cover using a heat light.

    Heating Temperature

    Item Temperature
    Rear Bumper Cover 20 to 30 °C (68 to 86 °F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. Clean the rear bumper cover surface.
      1. Using a heat light, heat the rear bumper cover surface.
      2. Remove any double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new rear bumper pad.
      1. Using a heat light, heat the rear bumper cover surface.
      2. Remove the release paper from the rear bumper pad.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

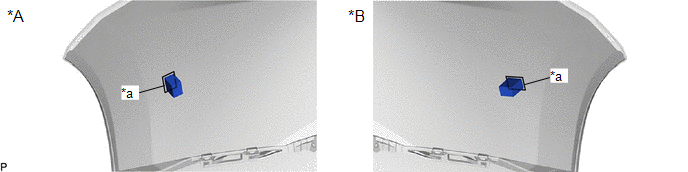

      3. Install the 2 rear bumper pads as shown in the illustration.
        GTY1013452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A For RH Side *B For LH Side
        *a Line - -

        HINT:

        • Install the rear bumper pad along the line on the rear bumper cover.
        • Press the rear bumper pad firmly to install it.
  13. INSTALL REAR BUMPER MOULDING
    1. For Type A:

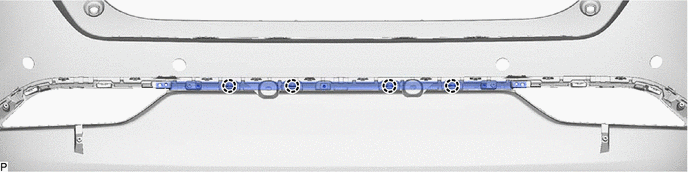

      1. Engage the 4 claws.
        GTY1014786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

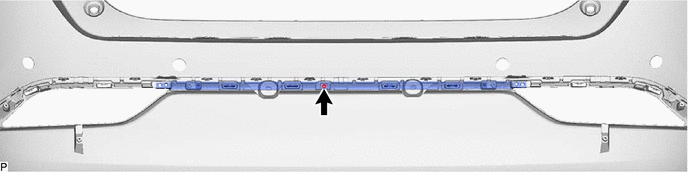

      2. Install the rear bumper moulding with the screw.
        GTY1014357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For Type B:

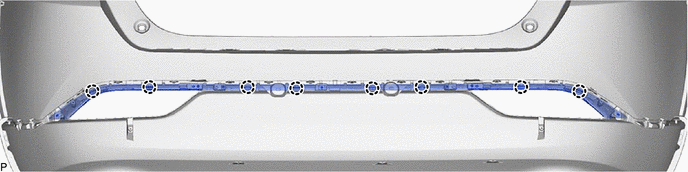

      1. Engage the 8 claws.
        GTY1014362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

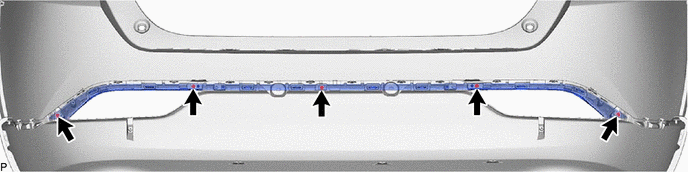

      2. Install the rear bumper moulding with the 5 screws.
        GTY1014363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR BUMPER SIDE MOULDING LH (for Type A)

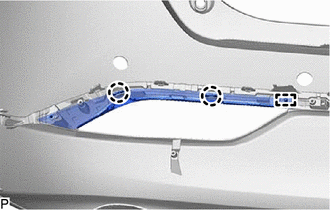

    1. Engage the guide and 2 claws.
      GTY1014358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

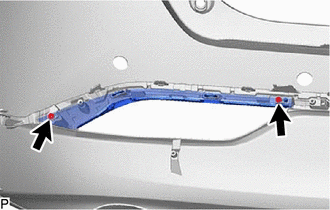

    2. Install the rear bumper side moulding LH with the 2 screws.
      GTY1014359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR BUMPER SIDE MOULDING RH (for Type A)

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL NO. 2 LUGGAGE ROOM WIRE

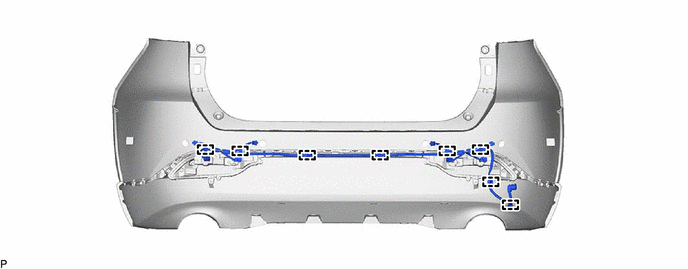

    1. w/o Kick Sensor:
      1. Engage the 8 clamps to install the No. 2 luggage room wire.
        GTY1010235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

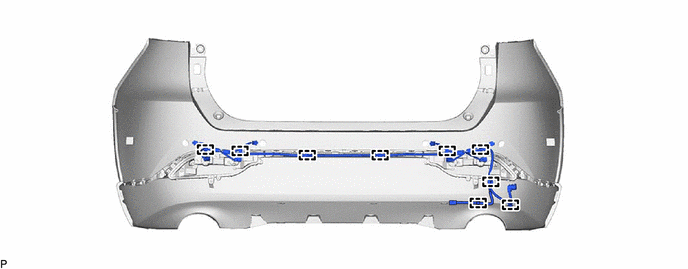

    2. w/ Kick Sensor:
      1. Engage the 9 clamps to install the No. 2 luggage room wire.
        GTY1010535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL REAR TURN SIGNAL LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  18. INSTALL REAR TURN SIGNAL LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  19. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  20. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  21. INSTALL REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  22. INSTALL REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

  23. INSTALL KICK DOOR CONTROL SENSOR WITH BRACKET (w/ Kick Sensor)

    Refer to PROCEDURE - Step 2
