Removal [07/2020 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

    See step  35[07/2020 - 12/2021], or see step  39[12/2021 - 10/2022], or see step  39[10/2022 - ]

  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

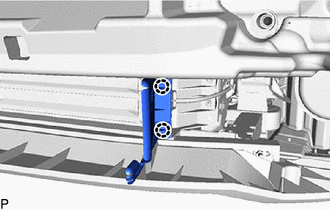

    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY1013927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

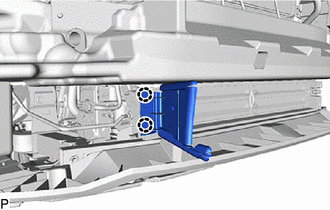

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY1013925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  6. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

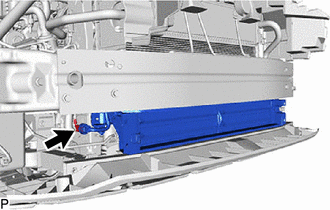

    1. Disconnect the connector.
      GTY1013924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts and radiator shutter sub-assembly.
      GTY939282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
