Removal [07/2020 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE THERMISTOR ASSEMBLY

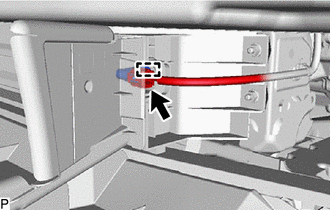

    1. Disengage the clamp.
      GTY988827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
