Installation [07/2020 - 10/2022]: Procedure

  1. INSTALL MULTI-DISPLAY ASSEMBLY
  2. INSTALL TRANSCEIVER ANTENNA BASE SUB-ASSEMBLY

    See step  1

  3. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL NO. 4 RADIO RECEIVER BRACKET
    1. Install the No. 4 radio receiver bracket with the 2 screws.

      Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

  5. INSTALL NO. 3 RADIO RECEIVER BRACKET
    1. Install the No. 3 radio receiver bracket with the 2 screws.

      Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)

  6. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET
    1. Connect each connector.

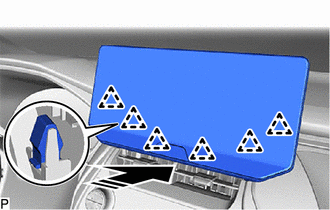

    2. Engage the 6 clips as shown in the illustration.
      GTY988153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Install the multi-display assembly with bracket with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      HINT:

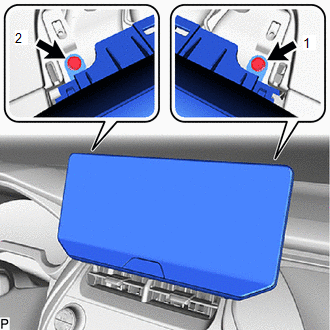

      Install the bolts in the order shown in the illustration.

      Fig 1: Multi-Display Assembly With Bracket Tightening Sequence
      GTY988087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 15
