Installation [07/2020 - 10/2022]: Procedure

  1. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

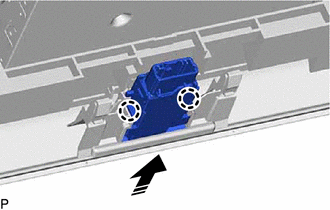

    1. Engage the 2 claws to install the hazard warning signal switch assembly as shown in the illustration.
      GTY988523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)

    Refer to PROCEDURE - Step 5

  3. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 6

  4. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 15
