Installation [07/2020 - ]: Procedure

INSTALL DCM (TELEMATICS TRANSCEIVER)
INSTALL NO. 1 TELEPHONE BRACKET
1. Install the No. 1 telephone bracket with the 2 screws.
  Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)
INSTALL NO. 2 TELEPHONE BRACKET
1. Install the No. 2 telephone bracket with the 2 screws.
  Torque: 3.5 N*m (36 kgf*cm, 31 in.*lbf)
INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
1. Engage the 2 guides.

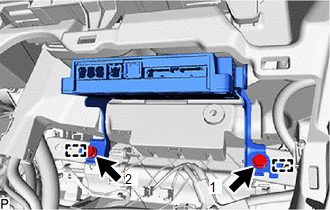

  Fig 1: DCM (Telematics Transceiver) With Bracket Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the DCM (telematics transceiver) with bracket with the 2 bolts.
  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  HINT:

  Install the bolts in the order shown in the illustration.
3. Engage the clamp.
4. Connect each connector.
INSTALL WIRELESS CHARGER ASSEMBLY
Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]
INSTALL UPPER CONSOLE BOX INSULATOR
Refer to PROCEDURE - Step 10 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]
INSTALL AIR CONDITIONING CONTROL ASSEMBLY
Refer to INSTALLATION [07/2020 - ]
PERFORM DCM ACTIVATION
HINT:

After replacing the DCM (telematics transceiver), make sure to perform DCM activation.

Refer to DCM ACTIVATION [07/2020 - ]
PERFORM REGISTRATION
HINT:

After replacing the DCM (telematics transceiver), make sure to perform code registration.

Refer to REGISTRATION [07/2020 - 12/2021] , or refer to REGISTRATION [12/2021 - ]
