Installation [07/2020 - 10/2022]: Procedure

  1. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
  2. INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. INSTALL WIRELESS CHARGER ASSEMBLY
    1. Engage the clamp.
    2. Connect each connector.

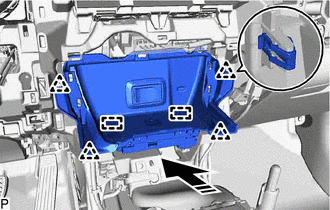

    3. Engage the 4 clips and 2 guides to install the wireless charger assembly as shown in the illustration.
      GTY987572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL UPPER CONSOLE BOX INSULATOR

    Refer to PROCEDURE - Step 10

  5. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]
