Installation [10/2022 - ]: Procedure

  1. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display)
  2. INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY (for 8 Inch Display)

    Refer to PROCEDURE - Step 1

  3. INSTALL NO. 2 RADIO RECEIVER BRACKET (for 8 Inch Display)
    1. Install the No. 2 radio receiver bracket with the 2 screws.

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

  4. INSTALL NO. 1 RADIO RECEIVER BRACKET (for 8 Inch Display)
    1. Install the No. 1 radio receiver bracket with the 2 screws.

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

  5. INSTALL RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET (for 8 Inch Display)
    1. Connect each connector.

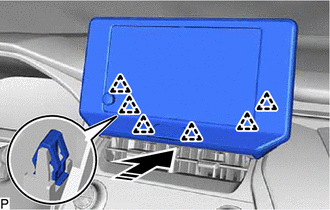

    2. Engage the 6 clips as shown in the illustration.
      GTY1121153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

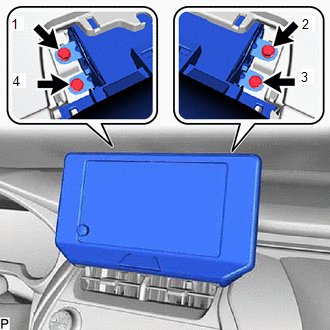

    3. Install the radio and display receiver assembly with bracket with the 4 bolts.
      GTY1120310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

      HINT:

      Install the bolts in the order shown in the illustration.

  6. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL (for 8 Inch Display)

    Refer to PROCEDURE - Step 14

  7. INSTALL RADIO RECEIVER ASSEMBLY (for 12.3 Inch Display)
  8. INSTALL NO. 2 RADIO BRACKET (for 12.3 Inch Display)
    1. Install the No. 2 radio bracket with the 2 screws.

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

  9. INSTALL NO. 1 RADIO BRACKET (for 12.3 Inch Display)
    1. Install the No. 1 radio bracket with the 2 screws.

      Torque: 3.5 N.m (36 kgf/cm, 31 in.lbf)

  10. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (for 12.3 Inch Display)
    1. Connect each connector.

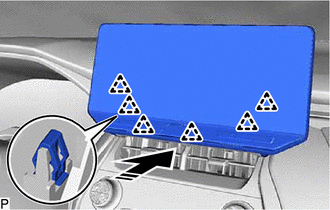

    2. Engage the 6 clips as shown in the illustration.
      GTY1120557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

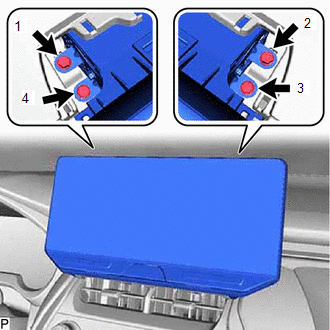

    3. Install the radio and display receiver assembly with bracket with the 4 bolts.
      GTY1120572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

      HINT:

      Install the bolts in the order shown in the illustration.

  11. INSTALL CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL (for 12.3 Inch Display)

    Refer to PROCEDURE - Step 14

  12. PERFORM REGISTRATION

    HINT:

    When replacing the radio and display receiver assembly, perform registration.

    Refer to REGISTRATION [10/2022 - ]
