Installation [07/2020 - ]: Procedure

  1. INSTALL TURN SIGNAL SWITCH

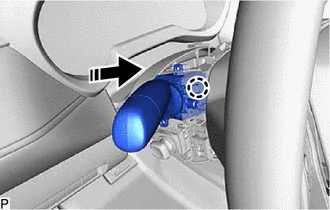

    1. Engage the claw as shown in the illustration.
      GTY988564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the turn signal switch with the 2 screws.
  2. INSTALL UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 2

  3. INSTALL LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 3

  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 19 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 19 [12/2021 - ]
