Installation [07/2020 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Engage the claw to install the windshield wiper switch assembly as shown in the illustration.

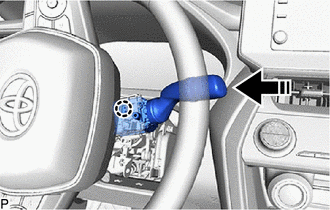

      GTY989883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the claw to install the upper steering column cover as shown in the illustration.

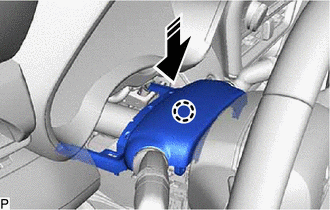

      GTY939212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Engage the 4 claws and 2 guides to connect the instrument cluster finish panel assembly to the upper steering column cover.
  3. INSTALL LOWER STEERING COLUMN COVER
    NOTE:

    If the lower steering column cover is installed in the incorrect order, the parts may break.

    1. Engage the 2 claws.

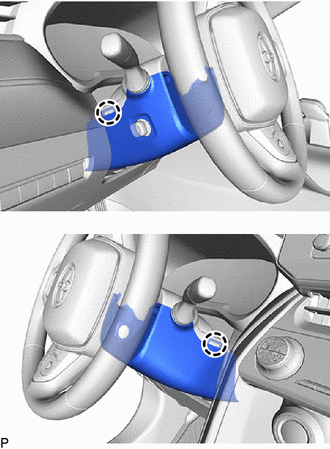

      GTY989006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the screw.
    3. Turn the steering wheel assembly to the left and install the screw.
    4. Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.
  4. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 19 [07/2020 - 12/2021] , or refer to PROCEDURE - Step 19 [12/2021 - ]
