Installation [07/2020 - ]: Procedure

  1. INSTALL STEERING VIBRATION ECU
    1. w/o Steering Heater:

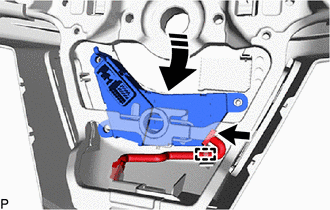

      1. Temporarily install the steering vibration ECU as shown in the illustration.
        GTY991598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      2. Connect the connector.
      3. Engage the clamp.
    2. w/ Steering Heater:

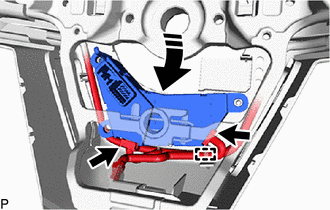

      1. Temporarily install the steering vibration ECU as shown in the illustration.
        GTY990898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      2. Connect the 2 connectors.
      3. Engage the clamp.
    3. Install the steering vibration ECU with the 3 screws.
  2. INSTALL STEERING PAD SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  4. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - ]

  5. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]
